Charge Air Cooler Outlet Hose Removal Note

WARNING: This page is about a different variant/trim than selected.

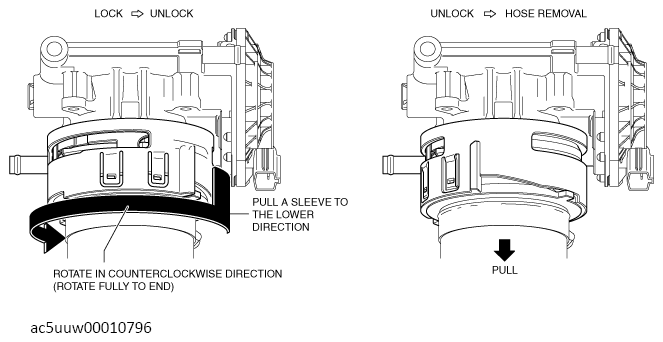

  1. Release the lock of connector and remove the charge air cooler outlet hose.
G13672352Courtesy of MAZDA MOTORS CORP.
