Charge Air Cooler Outlet Hose Installation Note

WARNING: This page is about a different variant/trim than selected.

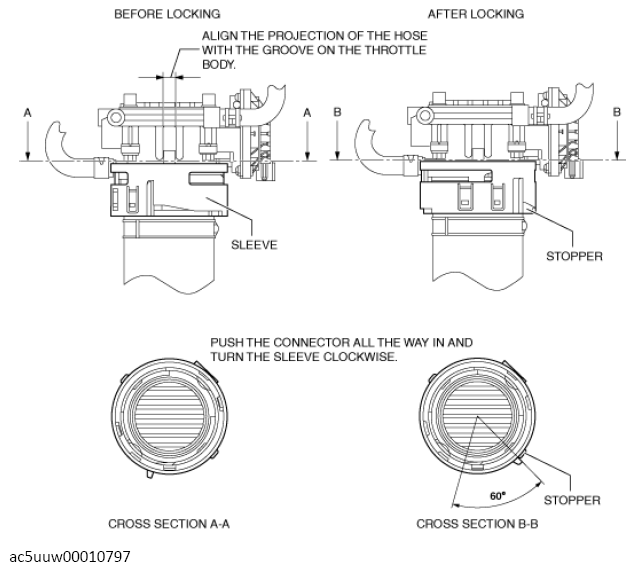

  1. Install the charge air cooler outlet hose as shown in the figure.
G14465366Courtesy of MAZDA MOTORS CORP.
