Charge Air Cooler Inlet Hose Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front under cover No. 1. (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION ).
  2. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION ).

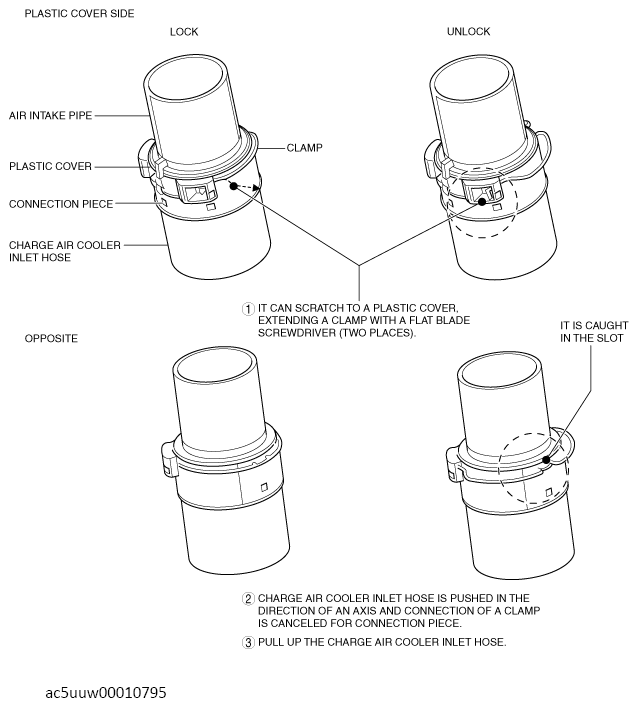

  3. Release the lock and remove the charge air cooler inlet hose as shown in the figure.
G13672351Courtesy of MAZDA MOTORS CORP.
