Charge Air Cooler Inspection
WARNING: This page is about a different variant/trim than selected.

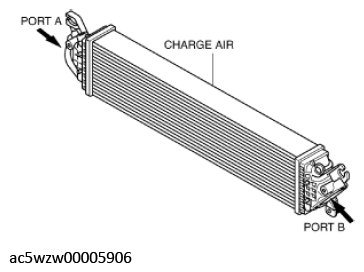

- Plug port A.
- Apply pressure from port B and verity that there is no airflow.
- If there is airflow, replace the charge air cooler. (See CHARGE AIR COOLER REMOVAL/INSTALLATION ).
