Parking Assist Unit (Ultrasonic) Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).
  2. Remove the following parts:
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION ).
    2. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION ).
    3. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION ).
    4. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION ).
  3. Disconnect the connector.

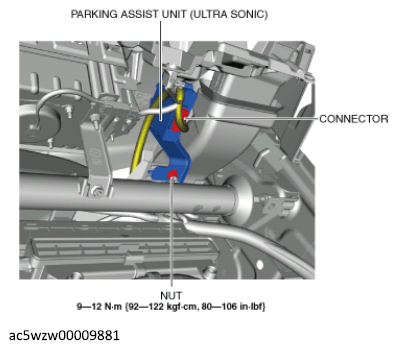

    Fig 1: Parking Assist Unit (Ultrasonic) Nut With Torque Specification
    G12190019Courtesy of MAZDA MOTORS CORP.
  4. Remove the nut.
  5. Pull the parking assist unit (ultra sonic) in the direction of the arrow shown in the figure and remove it..

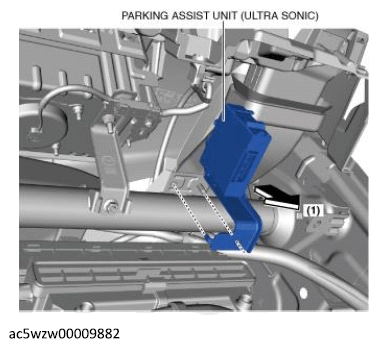

    G12190020Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
