Cowl Panel Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).
  2. Remove the following parts:
    1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION ).
    2. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION ).
    3. Windshield wiper motor and link (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION ).
    4. Keyless beeper (with advanced keyless entry system) (See KEYLESS BEEPER REMOVAL/INSTALLATION ).

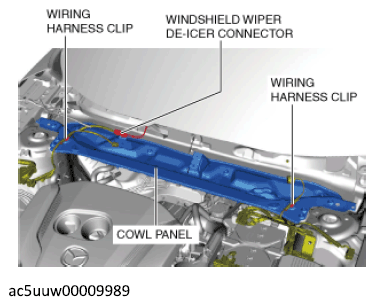

  3. Disconnect the windshield wiper deicer connector. (with windshield wiper de-icer)
    G12183631Courtesy of MAZDA MOTORS CORP.
  4. Remove the wiring harness clips.
  5. Remove the bolts.

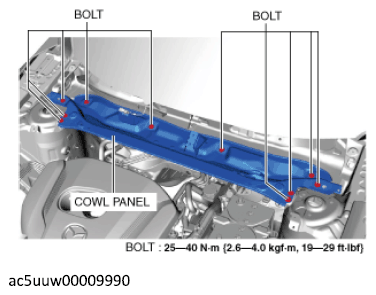

    Fig 1: Cowl Panel Bolts With Torque Specification
    G12183632Courtesy of MAZDA MOTORS CORP.
  6. Remove the cowl panel.
  7. Install in the reverse order of removal.
