Rear parking sensor buzzer: Notes

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).
  2. remove the following parts:
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION ).
    2. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION ).
    3. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION ).
    4. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION ).
  3. Connect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).

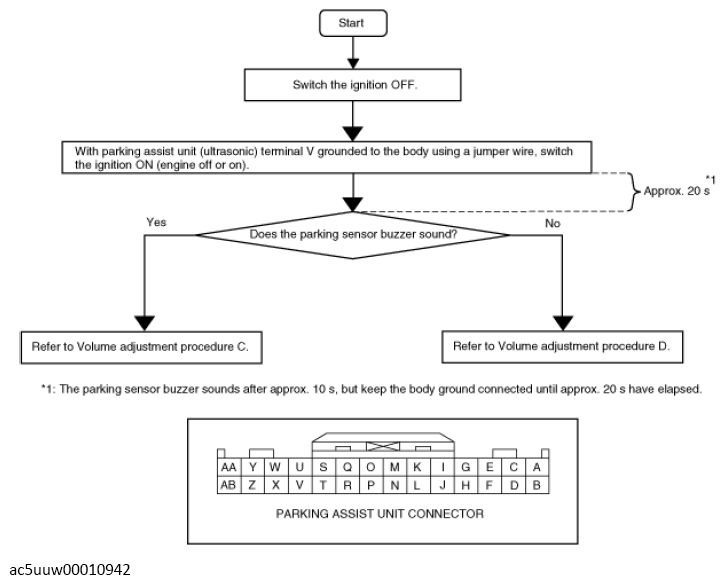

  4. Perform the following procedure to determine the correct adjustment procedure.
G13115663Courtesy of MAZDA MOTORS CORP.
