Upper Panel Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Open the console lid.
  3. Move the upper panel component in the direction of the arrow shown in the figure and detach the clips, hooks, and guides.

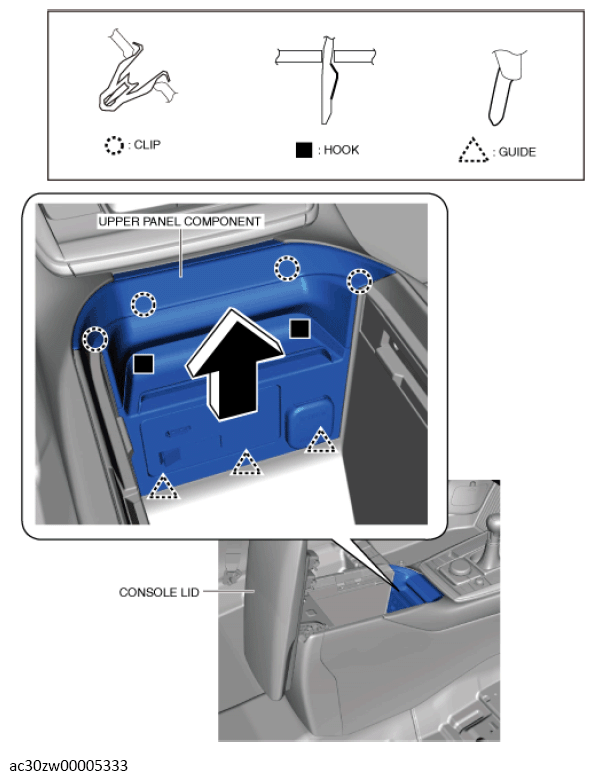

    G14491926Courtesy of MAZDA MOTORS CORP.
  4. Insert a hand at the back of the upper panel and detach the clip at the position shown in the figure, and remove the upper panel from the console-up.
    G13560828Courtesy of MAZDA MOTORS CORP.
  5. When removing the console-up, perform the following procedure:
    1. Disconnect the connector.

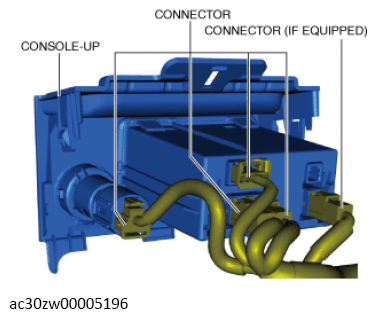

      G14491928Courtesy of MAZDA MOTORS CORP.
    2. Remove the console-up.
  6. Install in the reverse order of removal.
