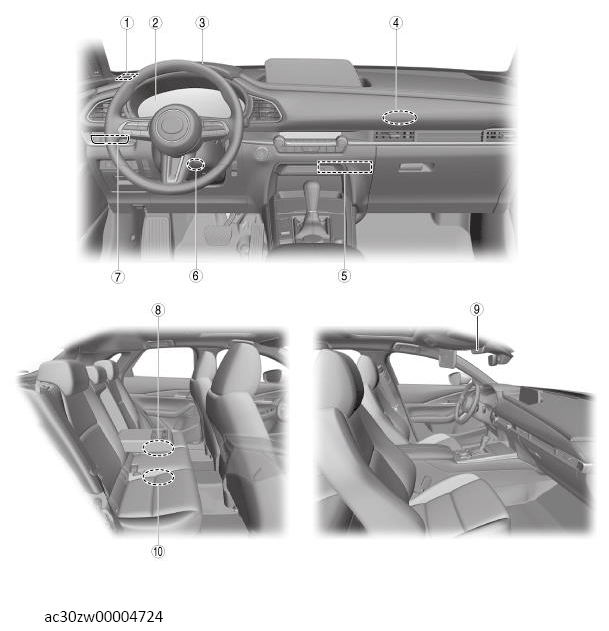

| 1 |
TEL antenna No. 2 (with telematics communication system)
(See TEL ANTENNA REMOVAL/INSTALLATION [(US)] .)
(See TEL ANTENNA INSPECTION [(US)] .) |
| 2 |
Instrument cluster
(See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
(See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .)
(See INSTRUMENT CLUSTER INSPECTION [(US)] .) |
| 3 |
Active driving display (with active driving display)
(See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION [(US)] .)
(See ACTIVE DRIVING DISPLAY DISASSEMBLY/ASSEMBLY .)
(See ACTIVE DRIVING DISPLAY INSPECTION .) |
| 4 |
TEL antenna No. 1 (with telematics communication system)
(See TEL ANTENNA REMOVAL/INSTALLATION [(US)] .)
(See TEL ANTENNA INSPECTION [(US)] .) |
| 5 |
Telematics communication unit (with telematics communication system)
(See TELEMATICS COMMUNICATION UNIT REMOVAL/INSTALLATION .)
(See TELEMATICS COMMUNICATION UNIT INSPECTION .)
(See TELEMATICS COMMUNICATION UNIT INITIAL SETTING .)
(See ACTIVATING REMOTE CONTROL BY SMART PHONE .) |
| 6 |
Front Notification and warning speaker
(See NOTIFICATION AND WARNING SPEAKER REMOVAL/INSTALLATION .)
(See NOTIFICATION AND WARNING SPEAKER INSPECTION .) |
| 7 |
Parking sensor OFF switch (with parking sensor system)
(See PARKING SENSOR OFF SWITCH REMOVAL/INSTALLATION .)
(See PARKING SENSOR OFF SWITCH INSPECTION .) |
| 8 |
Fuel gauge sender unit (main)
(See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [(US)] .)
(See FUEL GAUGE SENDER UNIT INSPECTION [(US)] .) |
| 9 |
Indicator unit
(See INDICATOR UNIT REMOVAL/INSTALLATION .)
(See INDICATOR UNIT INSPECTION .) |
| 10 |
Fuel gauge sender unit (sub) (AWD)
(See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [(US)] .)
(See FUEL GAUGE SENDER UNIT INSPECTION [(US)] .) |
