EVP Control Unit Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.

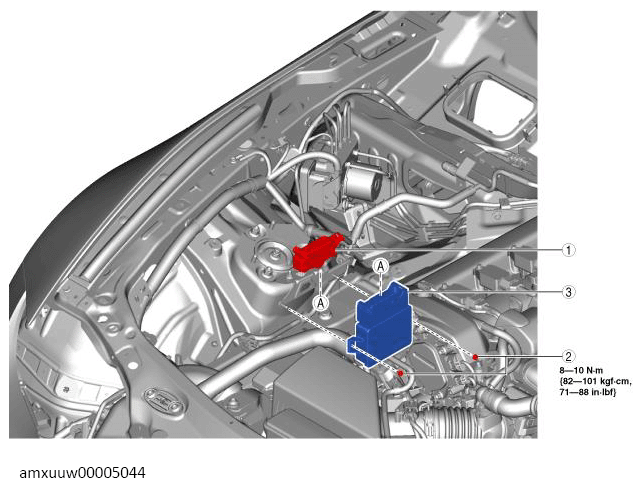

COMPONENT DESCRIPTION1 EVP control unit connector 2 Nut 3 EVP control unit
