Tire House Trim Removal/Installation

  1. Remove the scuff plate. (See SCUFF PLATE REMOVAL/INSTALLATION .)

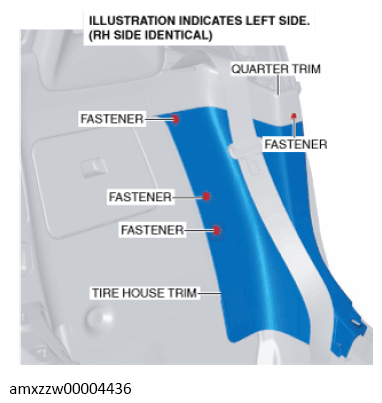

  2. Remove the fasteners.
    G13491370Courtesy of MAZDA MOTORS CORP.

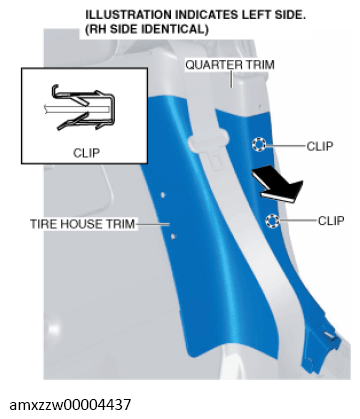

  3. Move the tire house trim in the direction of the arrow shown in the figure and detach the clips from the body panel.
    G13491371Courtesy of MAZDA MOTORS CORP.

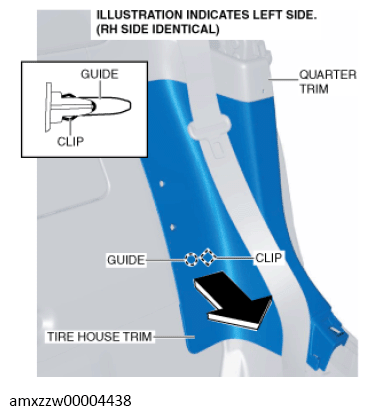

  4. Move the tire house trim in the direction of the arrow shown in the figure and detach the clip and guide from the body panel.
    G13491372Courtesy of MAZDA MOTORS CORP.

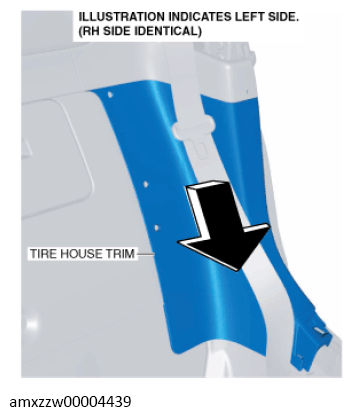

  5. Remove the tire house trim while sliding it in the direction of the arrow shown in the figure.
    G13491373Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
