Front Side Trim Removal/Installation

  1. Remove the scuff plate. (See SCUFF PLATE REMOVAL/INSTALLATION .)
  2. Partially peel back the seaming welt.

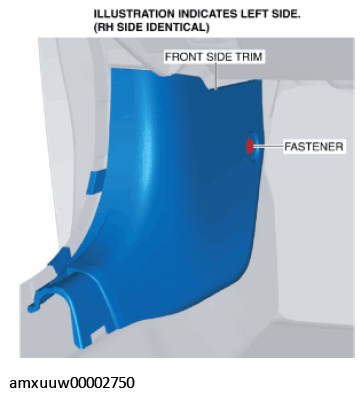

  3. Remove the fastener.
    G11275278Courtesy of MAZDA MOTORS CORP.

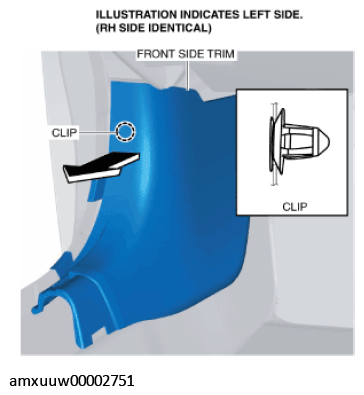

  4. Move the front side trim in the direction of the arrow shown in the figure and detach the clip from the body panel.
    G11275279Courtesy of MAZDA MOTORS CORP.
  5. Remove the front side trim.
  6. Install in the reverse order of removal.
