A-Pillar Trim Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

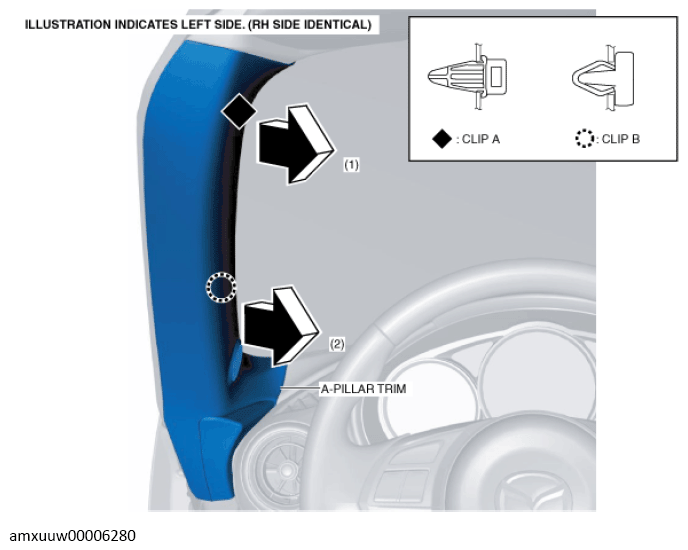

  2. Move the A-pillar trim in the order of arrows (1) and (2) shown in the figure, and detach clips A and B.
    G13491210Courtesy of MAZDA MOTORS CORP.

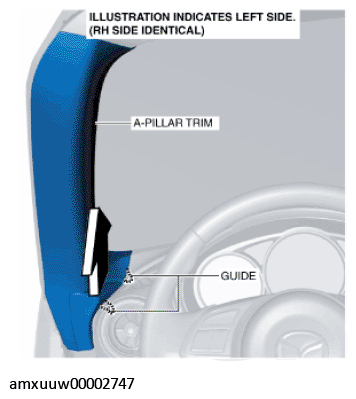

  3. Pull the A-pillar trim in the direction of the arrows shown in the figure and remove it while releasing the guides.
    G11275205Courtesy of MAZDA MOTORS CORP.

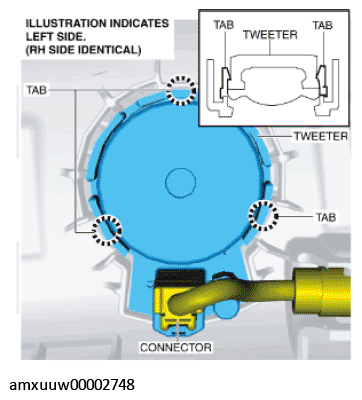

  4. Release the tabs in the positions shown in the figure and remove the tweeter from the A-pillar trim.
    NOTE:
    • The tweeter connector cannot be disconnected with the tweeter installed to the A-pillar trim.
    G11275206Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the connector.

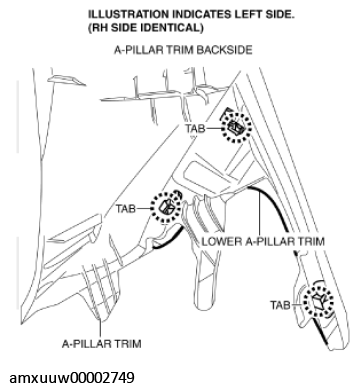

  6. To remove the lower A-pillar trim, release the tabs in the positions shown in the figure and remove it from the A-pillar trim.
    G11275207Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
