Front CROSSMEMBER Under Cover Removal/Installation

  1. Lift up the vehicle.
  2. Remove the bolts.

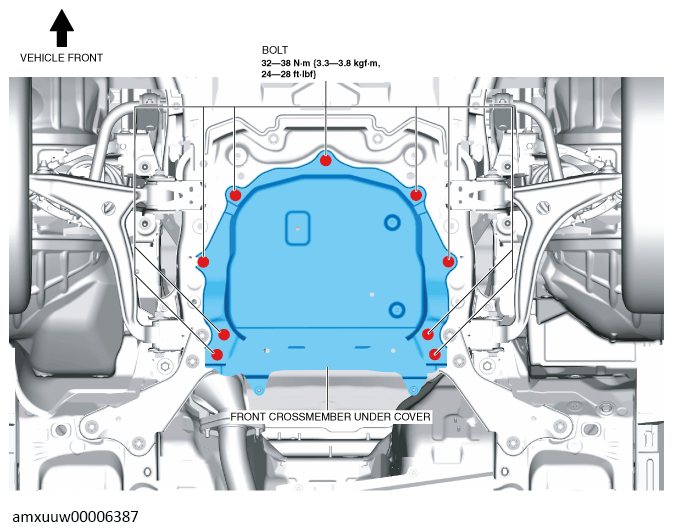

    Fig 1: Front Crossmember Under Cover Bolts With Torque Specification
    G13490999Courtesy of MAZDA MOTORS CORP.
  3. Remove the front crossmember under cover.
  4. Install in the reverse order of removal.
