DTC U2013-13: Cluster Switch Circuit Malfunction [Instrument Cluster]: Notes

Description	Cluster switch circuit malfunction
Detection condition	Instrument cluster detects an open circuit in the cluster switch circuit with the ignition switched ON (engine off or on).
Fail-safe function	Not applicable

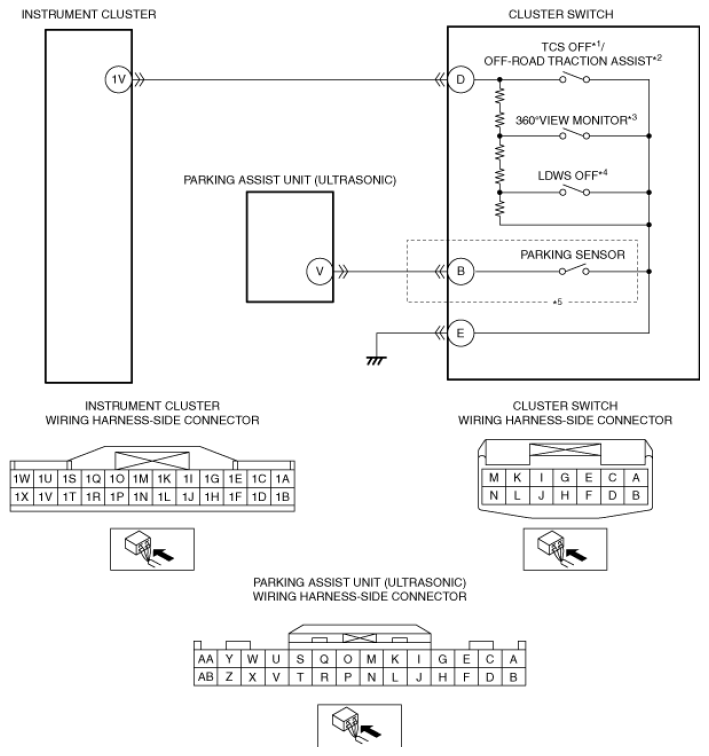

POSSIBLE CAUSE	Cluster switch connector or terminal malfunction Open circuit in wiring harness between cluster switch terminal E and body ground Instrument cluster connector or terminal malfunction Open circuit in wiring harness between instrument cluster terminal 1V and cluster switch terminal D Cluster switch malfunction Instrument cluster malfunction
Courtesy of MAZDA MOTORS CORP.

*1: Without OFF-road traction assist

*2: With OFF-road traction assist

*3: With 360°view monitor system

*4: With lane departure warning system (LDWS)

*5: With parking assist system
