Warning/Indicator Light Illumination Inspection

Connect the M-MDS to the DLC-2.
After vehicle identification, select the following from the M-MDS initialization screen.
1. Select "Data logger"
2. Select "Module"
3. Select "IC"
Using the simulation function WL+IL, verify that the warning/indicator lights in the following table are illuminated.
- If any of the warning/indicator lights are not displayed, replace the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)

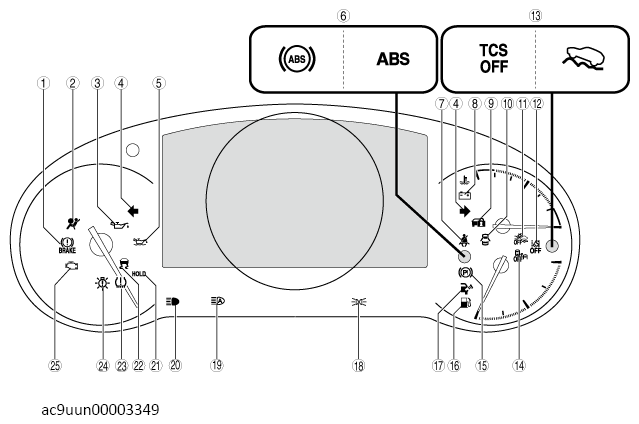

Instrument cluster (type A)

Courtesy of MAZDA MOTORS CORP.

x: Applicable-: Not applicable

WARNING LIGHT/INDICATOR LIGHT AND NAME DESCRIPTION

No.	Warning light/Indicator light	Name	Message is displayed in center display when warning/indicator light turns on/flashes	Comment	Warning/indicator light turned on when ignition is switched ON (engine off or on)
1	Courtesy of MAZDA MOTORS CORP.	Brake system warning light	x	-	x
2	Courtesy of MAZDA MOTORS CORP.	Air bag/front seat belt pretensioner system warning light	x	-	-
3	Courtesy of MAZDA MOTORS CORP.	Engine oil warning light	x	-	x
4	Courtesy of MAZDA MOTORS CORP.	Turn signal/hazard warning indicator lights	-	-	-
5	Courtesy of MAZDA MOTORS CORP.	Engine oil level warning light	x	With engine oil level sensor	-
6	Courtesy of MAZDA MOTORS CORP.	ABS warning light	x	U.S.A specs	x
6	Courtesy of MAZDA MOTORS CORP.	ABS warning light	x	Except U.S.A specs	x
7	Courtesy of MAZDA MOTORS CORP.	Seat belt warning light	-	-	-
8	Courtesy of MAZDA MOTORS CORP.	Charging system warning light	x	-	x
9	Courtesy of MAZDA MOTORS CORP.	Security indicator light	-	-	x
10	Courtesy of MAZDA MOTORS CORP.	Door-ajar warning light	-	-	-
11	Courtesy of MAZDA MOTORS CORP.	Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light	-	With smart city brake support (SCBS) or smart brake support (SBS)	x
12	Courtesy of MAZDA MOTORS CORP.	Lane-keep assist system OFF indicator light/LDWS OFF indicator light	-	With lane departure warning system (LDWS) or lane-keep assist system	-
13	Courtesy of MAZDA MOTORS CORP.	TCS OFF indicator light	-	Without off-road traction assist	x
13	Courtesy of MAZDA MOTORS CORP.	Off-road traction assist indicator light	-	With off-road traction assist	x
14	Courtesy of MAZDA MOTORS CORP.	Blind spot monitoring (BSM) OFF indicator light	-	With blind spot monitoring (BSM) system	-
15	Courtesy of MAZDA MOTORS CORP.	Electric parking brake warning light	x	-	-
16	Courtesy of MAZDA MOTORS CORP.	Low fuel warning light	-	-	-
17	Courtesy of MAZDA MOTORS CORP.	Check fuel cap warning light	x	-	x
18	Courtesy of MAZDA MOTORS CORP.	Lights-on indicator light	-	-	-
19	Courtesy of MAZDA MOTORS CORP.	Adaptive LED headlights indicator light (green)/adaptive LED headlights warning light (amber)	x	With high beam control (HBC) system or adaptive LED headlights	x
20	Courtesy of MAZDA MOTORS CORP.	Headlight high-beam indicator light	-	-	-
21	Courtesy of MAZDA MOTORS CORP.	Mazda radar cruise control with stop go function (MRCC with stop GO function) indicator light	-	With Mazda Radar Cruise Control with stop go function (MRCC with stop go function)	x
21	Courtesy of MAZDA MOTORS CORP.	AUTOHOLD active indicator light		With AUTOHOLD	X
22	Courtesy of MAZDA MOTORS CORP.	TCS/DSC indicator light	x	-	x
23	Courtesy of MAZDA MOTORS CORP.	Tire pressure monitoring system warning light	x	-	x
24	Courtesy of MAZDA MOTORS CORP.	LED headlight warning light	x	With headlight (LED type)	-
25	Courtesy of MAZDA MOTORS CORP.	Check engine light	x	-	x

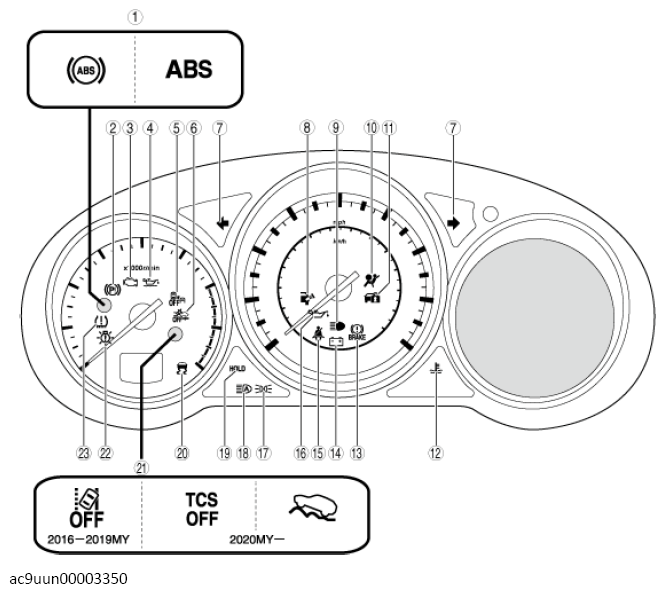

Instrument cluster (type B)

Courtesy of MAZDA MOTORS CORP.

x: Applicable-: Not applicable

WARNING LIGHT/INDICATOR LIGHT AND NAME DESCRIPTION

No	Warning light/Indicator light	Name	Message is displayed in multi-information display when warning/indicator light turns on/flashes	Message is displayed in center display when warning/Indicator light turns on/flashes	Comment	Warning/Indicator light turned on when ignition is switched ON (engine off or on)
1	Courtesy of MAZDA MOTORS CORP.	ABS warning light	-	x	U.S.A specs	x
1	Courtesy of MAZDA MOTORS CORP.	ABS warning light	-	x	Except U.S.A specs	x
2	Courtesy of MAZDA MOTORS CORP.	Electric parking brake warning light	x	x	-	-
3	Courtesy of MAZDA MOTORS CORP.	Check engine light	-	x	-	x
4	Courtesy of MAZDA MOTORS CORP.	Engine oil level warning light	x	x	With engine oil level sensor	-
5	Courtesy of MAZDA MOTORS CORP.	Blind spot monitoring (BSM) OFF indicator light	-	-	With blind spot monitoring (BSM) system	-
6	Courtesy of MAZDA MOTORS CORP.	Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light	-	-	With smart city brake support (SCBS) or smart brake support (SBS)	x
7	Courtesy of MAZDA MOTORS CORP.	Turn signal/hazard warning indicator lights	-	-	-	-
8	Courtesy of MAZDA MOTORS CORP.	Check fuel cap warning light	x	x	-	x
9	Courtesy of MAZDA MOTORS CORP.	Headlight high-beam indicator light	-	-	-	-
10	Courtesy of MAZDA MOTORS CORP.	Air bag/front seat belt pretensioner system warning light	-	x	-	-
11	Courtesy of MAZDA MOTORS CORP.	Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)	x	x	-	x
12	Courtesy of MAZDA MOTORS CORP.	Security indicator light	-	-	-	x
13	Courtesy of MAZDA MOTORS CORP.	Brake system warning light	x	x	-	x
14	Courtesy of MAZDA MOTORS CORP.	Charging system warning light	x	x	-	x
15	Courtesy of MAZDA MOTORS CORP.	Seat belt warning light	-	-	-	-
16	Courtesy of MAZDA MOTORS CORP.	Engine oil warning light	x	x	-	x
17	Courtesy of MAZDA MOTORS CORP.	Lights-on indicator light	x	-	-	-
18	Courtesy of MAZDA MOTORS CORP.	HBC indicator light (green)/HBC warning light (amber)	-	x	With high beam control (HBC) system	x
19	Courtesy of MAZDA MOTORS CORP.	Mazda Radar Cruise Control with stop go function (MRCC with stop go function) indicator light	x	-	With Mazda Radar Cruise Control with stop go function (MRCC with stop go function)	x
19	Courtesy of MAZDA MOTORS CORP.	AUTOHOLD active indicator light	x	-	With AUTOHOLD	x
20	Courtesy of MAZDA MOTORS CORP.	TCS/DSC indicator light	-	x		x
21	Courtesy of MAZDA MOTORS CORP.	TCS OFF indicator light	-	-	Without off-road traction assist	x
	Courtesy of MAZDA MOTORS CORP.	Off-road traction assist indicator light	-	-	With off-road traction assist	x
	Courtesy of MAZDA MOTORS CORP.	Lane-keep assist system OFF indicator light/LDWS OFF indicator light	-	-	With lane departure warning system (LDWS) or lane-keep assist system	-
22	Courtesy of MAZDA MOTORS CORP.	LED headlight warning light	-	x	With headlight (LED type)	-
23	Courtesy of MAZDA MOTORS CORP.	Tire pressure monitoring system warning light	x	x	-	x

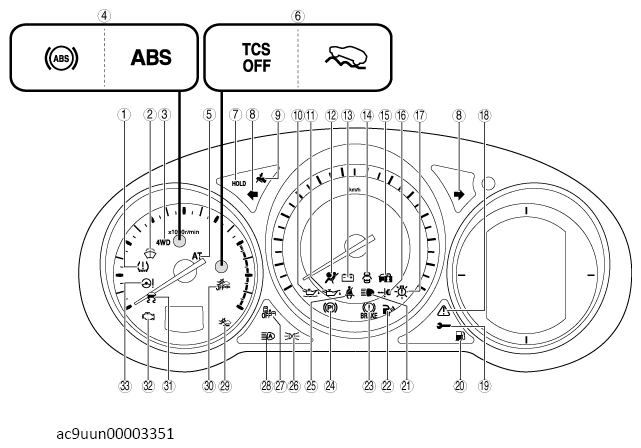

Instrument cluster (type C)

Courtesy of MAZDA MOTORS CORP.

x: Applicable-: Not applicable

WARNING LIGHT/INDICATOR LIGHT AND NAME DESCRIPTION

No.	Warning light/Indicator light	Name	Message is displayed in center display when warning/indicator light turns on/flashes	Comment	Warning/indicator light turned on when ignition is switched ON (engine off or on)
1	Courtesy of MAZDA MOTORS CORP.	Tire pressure monitoring system warning light	x	With TPMS	x
2	Courtesy of MAZDA MOTORS CORP.	Low washer fluid level warning light	x	With washer fluid-level sensor	-
3	Courtesy of MAZDA MOTORS CORP.	AWD warning light	x	AWD	x
4	Courtesy of MAZDA MOTORS CORP.	ABS warning light	x	U.S.A specs	x
4	Courtesy of MAZDA MOTORS CORP.	ABS warning light	x	Except U.S.A specs	x
5	Courtesy of MAZDA MOTORS CORP.	Automatic transaxle warning light	x	-	x
6	Courtesy of MAZDA MOTORS CORP.	TCS OFF indicator light	-	Without off-road traction assist	x
6	Courtesy of MAZDA MOTORS CORP.	Off-road traction assist indicator light	-	With off-road traction assist	x
7	Courtesy of MAZDA MOTORS CORP.	AUTOHOLD active indicator light	-	With AUTOHOLD	x
8	Courtesy of MAZDA MOTORS CORP.	Turn signal/hazard warning indicator lights	-	-	-
9	Courtesy of MAZDA MOTORS CORP.	Brake pedal operation demand indicator light	-	-	-
10	Courtesy of MAZDA MOTORS CORP.	Engine oil level warning light	x	-	-
11	Courtesy of MAZDA MOTORS CORP.	Engine oil warning light	x	-	x
12	Courtesy of MAZDA MOTORS CORP.	Air bag/front seat belt pretensioner system warning light	x	-	x
13	Courtesy of MAZDA MOTORS CORP.	Charging system warning light	x	-	x
14	Courtesy of MAZDA MOTORS CORP.	Door-ajar warning light	-	-	-
15	Courtesy of MAZDA MOTORS CORP.	Security indicator light	-	-	x
16	Courtesy of MAZDA MOTORS CORP.	KEY warning light (red)/KEY indicator light (green)	x	-	x
17	Courtesy of MAZDA MOTORS CORP.	LED headlight warning light	x	-	-
18	Courtesy of MAZDA MOTORS CORP.	Master warning light	x	-	x
19	Courtesy of MAZDA MOTORS CORP.	Wrench indicator light	x	-	x
20	Courtesy of MAZDA MOTORS CORP.	Low fuel warning light	x	-	-
21	Courtesy of MAZDA MOTORS CORP.	Headlight high-beam indicator light	-	-	-
22	Courtesy of MAZDA MOTORS CORP.	Check fuel cap warning light	x	-	x
23	Courtesy of MAZDA MOTORS CORP.	Brake system warning light	x	-	x
24	Courtesy of MAZDA MOTORS CORP.	Electric parking brake warning light	-	-	-
25	Courtesy of MAZDA MOTORS CORP.	Seat belt warning light	-	-	-
26	Courtesy of MAZDA MOTORS CORP.	Lights-on indicator light	-	-	-
27	Courtesy of MAZDA MOTORS CORP.	Blind spot monitoring (BSM) OFF indicator light	-	With blind spot monitoring (BSM) system (Without Blind spot monitoring (BSM) OFF switch)	x
28	Courtesy of MAZDA MOTORS CORP.	HBC indicator light (green)/HBC warning light (amber)	-	With high beam control (HBC) system	x
29	Courtesy of MAZDA MOTORS CORP.	Smart city brake support (SCBS) indicator light (red)/warning light (amber)	x	With SCBS	x
30	Courtesy of MAZDA MOTORS CORP.	Smart city brake support (SCBS) OFF indicator light	-	With SCBS	x
31	Courtesy of MAZDA MOTORS CORP.	TCS/DSC indicator light	x	-	x
32	Courtesy of MAZDA MOTORS CORP.	Check engine light	x	-	x
33	Courtesy of MAZDA MOTORS CORP.	Power steering malfunction indicator light	x	-	x
