Charge Air Cooler Inspection

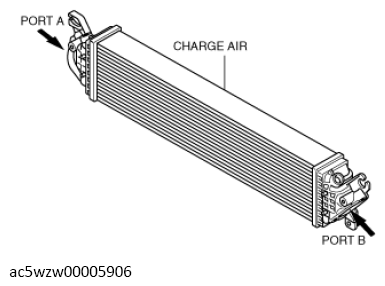

  1. Plug port A.
    G13698420Courtesy of MAZDA MOTORS CORP.
  2. Apply pressure from port B and verity that there is no airflow.
