Charge Air Cooler Removal/Installation: Notes

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the front bumper. (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
3. Remove in the order shown in the figure.
4. Install in the reverse order of removal.

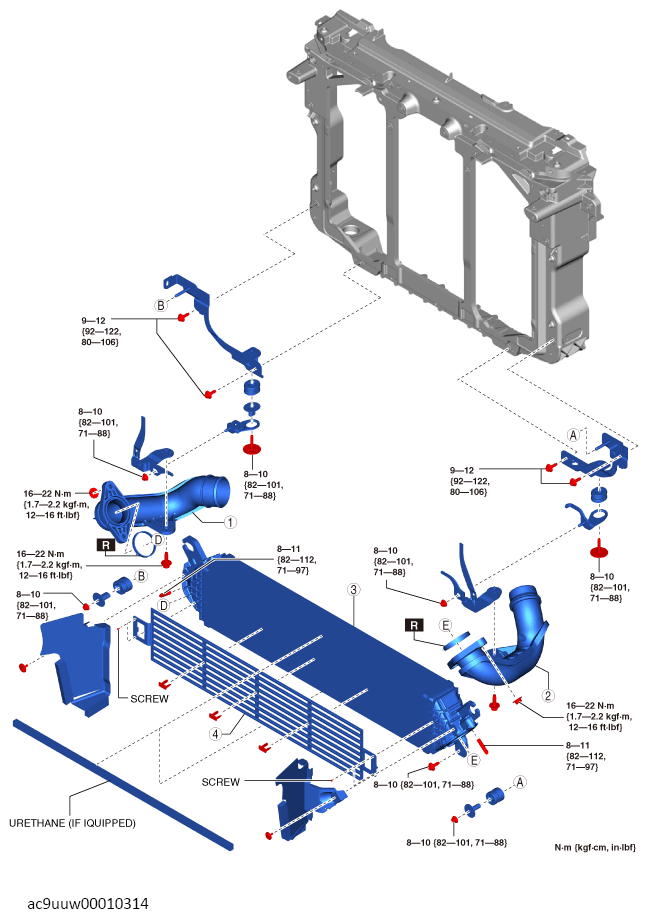

Fig 1: Charge Air Cooler Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Charge air cooler outlet pipe
2	Charge air cooler inlet pipe (See Charge Air Cooler Inlet Pipe Installation Note .)
3	Charge air cooler) See Charge Air Cooler Removal Note .) (See Charge Air Cooler Installation Note .)
4	Protector (U.S.A. and CANADA)
