FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION

  1. Lift up the vehicle.
  2. Remove the bolts and fasteners.
    Fig 1: Front Under Cover No. 1 Bolts With Torque Specification
    G11431115Courtesy of MAZDA MOTORS CORP.
  3. Remove the screws.

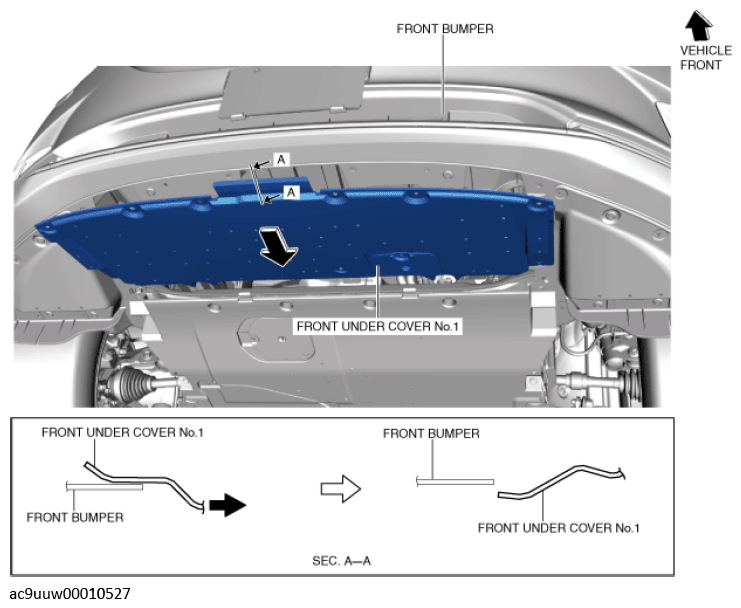

  4. Move the front under cover No. 1 in the direction of the arrow shown in the figure and remove it.
    G12266144Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
