DTC U2013-13: Cluster Switch Circuit Malfunction [Instrument Cluster]: Notes

DTC U2013:13 (INSTRUMENT CLUSTER) DETECTION CONDITION AND POSSIBLE CAUSE

Description	Cluster switch circuit malfunction
Detection condition	Instrument cluster detects an open circuit in the cluster switch circuit with the ignition switched ON (engine off or on).
Fail-safe function	Not applicable

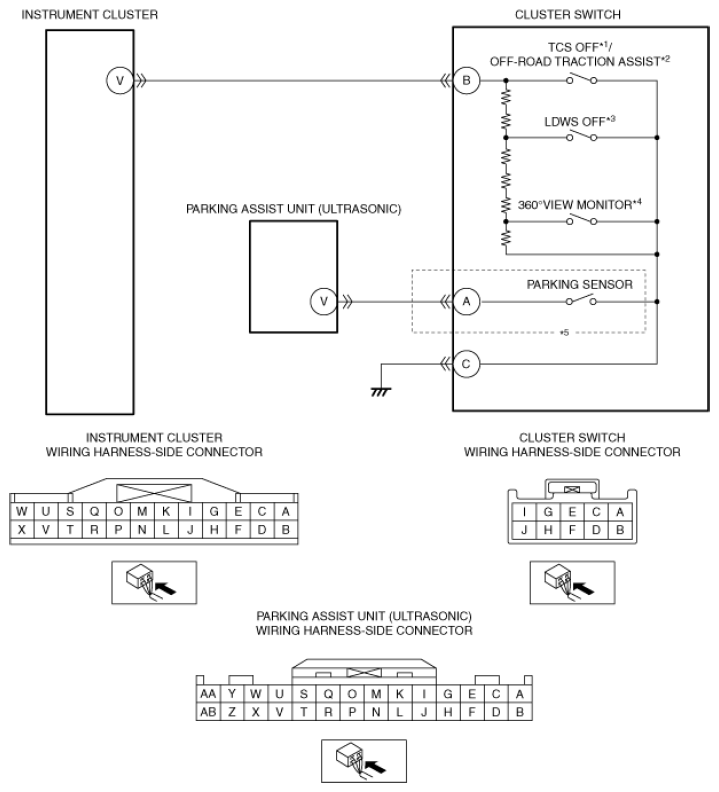

Possible cause	Cluster switch connector or terminal malfunction Open circuit in wiring harness between cluster switch terminal C and body ground Instrument cluster connector or terminal malfunction Open circuit in wiring harness between instrument cluster terminal V and cluster switch terminal B Cluster switch malfunction Instrument cluster malfunction
Courtesy of MAZDA MOTORS CORP.
*1: Without OFF-road traction assist *2: With OFF-road traction assist *3: With lane departure warning system (LDWS) *4: With 360° View monitor system *5: With parking assist system
