DTC P2530-00: Ignition Switch Stuck Off: Notes
WARNING: This page is about a different variant/trim than selected.
DTC P2530:00 DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P2530:00 |
Ignition switch stuck off |
| DETECTION CONDITION |
- If the IG ON time count of the instrument cluster proceeds 5 s under the following condition:
- Ignition switch signal off
|
| FAIL-SAFE FUNCTION |
Not applicable |
| POSSIBLE CAUSE |
- Start stop unit malfunction
- Ignition switch signal output stuck off
- Wiring harness malfunction
- Short or open signal in ignition switch

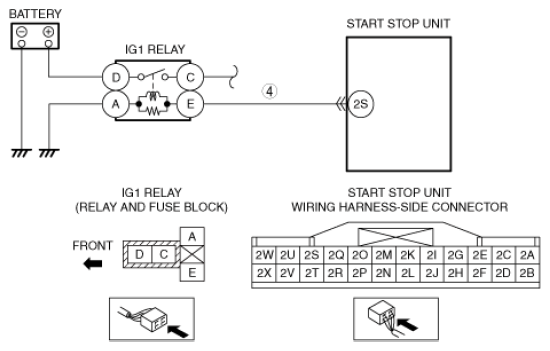

- Ignition switch signal terminal (start stop unit terminal 2S) malfunction
- Control valve body malfunction
- Ignition switch signal terminal (start stop unit terminal 2S) pin deformity
|
 Courtesy of MAZDA MOTORS CORP.
|
