Drive-by-wire control (+) signal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- The wave pattern is either type A or B depending on the PCM specifications.

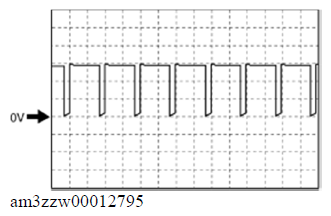

Type A
PCM terminals
- 1CG(+)-1CC(-)
Oscilloscope setting
- 5 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
- Idle after warm up

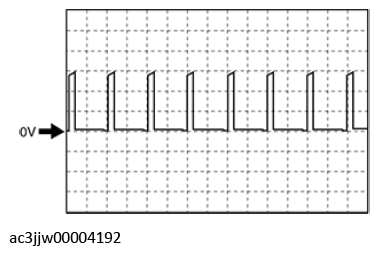

Type B
PCM terminals
- 1CG(+)-1CC(-)
Oscilloscope setting
- 5 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
- Idle after warm up
