PCM Component Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Install the PCM component using the following procedure:
    1. Return the PCM component that was set aside to its original position.
    2. Temporarily tighten the bolt shown in the figure.

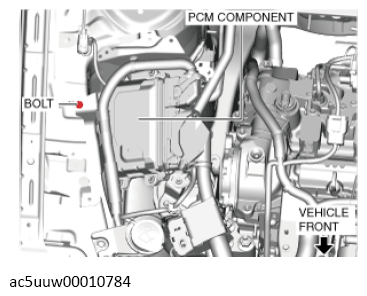

      G13119013Courtesy of MAZDA MOTORS CORP.
    3. Tighten the PCM component installation bolts in the order shown in the figure.
      Fig 1: PCM Component Installation Bolts Tightening Sequence

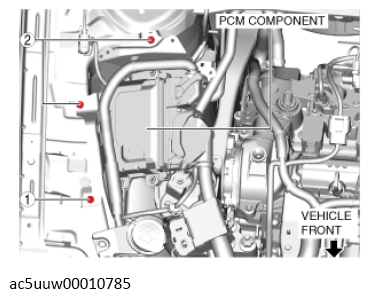

      G13119014Courtesy of MAZDA MOTORS CORP.
      TIGHTENING TORQUE SPECIFICATION

      Tightening torque
      9-10 N.m {92-101 kgf.cm, 80-88 in.lbf}
    4. Install the wiring harness protector and connector.
      Fig 2: Wiring Harness Protector Bolts With Torque Specification

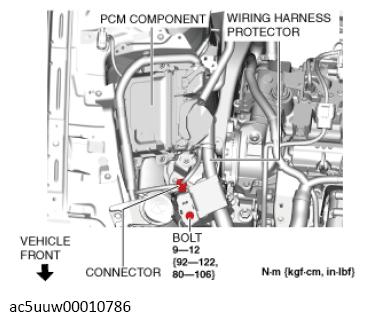

      G13119015Courtesy of MAZDA MOTORS CORP.
    5. Install the ground cable shown in the figure.
    Fig 3: Ground Cable Bolt With Torque Specification

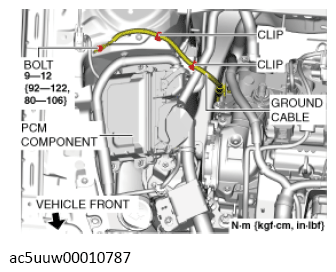

    G13119016Courtesy of MAZDA MOTORS CORP.
