Transfer Oil Seal (LH)

WARNING: This page is about a different variant/trim than selected.
  1. Drain the transfer oil. (See TRANSFER OIL REPLACEMENT [FW6AX-EL, GW6AX-EL] .)
  2. Remove the transfer from the vehicle. (See TRANSFER REMOVAL/INSTALLATION [FW6AX-EL] .) (See TRANSFER REMOVAL/INSTALLATION [GW6AX-EL (VIN Y)] .)

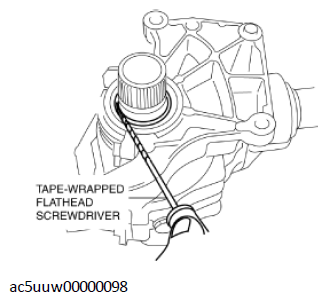

  3. Insert a tape-wrapped flathead screwdriver into the lip area of the oil seal (LH) as shown in the figure and remove the oil seal (LH).
    G11435996Courtesy of MAZDA MOTORS CORP.

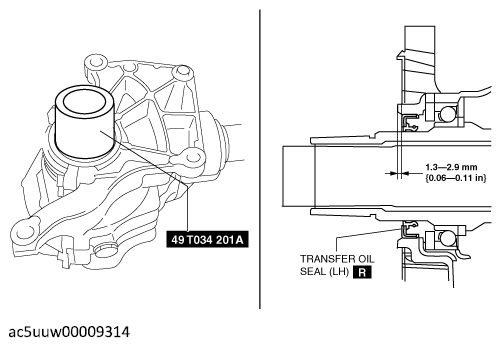

  4. Using the SST and a hammer, tap the new seal into place.
    G12185106Courtesy of MAZDA MOTORS CORP.
  5. Apply the lip of the oil seal with transfer oil.
  6. Install the transfer to the vehicle. (See TRANSFER REMOVAL/INSTALLATION [FW6AX-EL] .) (See TRANSFER REMOVAL/INSTALLATION [GW6AX-EL (VIN Y)] .)
  7. Add the specified amount and type of oil. (See TRANSFER OIL REPLACEMENT [FW6AX-EL, GW6AX-EL] .)
