DTC P0335-00: CKP Sensor Circuit Problem: Notes

WARNING: This page is about a different variant/trim than selected.

DTC P0335:00 (PCM, VIN Y) DETECTION CONDITION AND POSSIBLE CAUSE

DTC P0335:00	CKP sensor circuit problem
DETECTION CONDITION	There is no CKP sensor signal input while the exhaust camshaft rotates 5 times. The CKP sensor input signal pattern, received while the crankshaft rotates 10 times, is incorrect. Diagnostic support note This is a continuous monitor (CCM). The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle. FREEZE FRAME DATA/Snapshot data is available. DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	Stops fuel injection Stops ignition

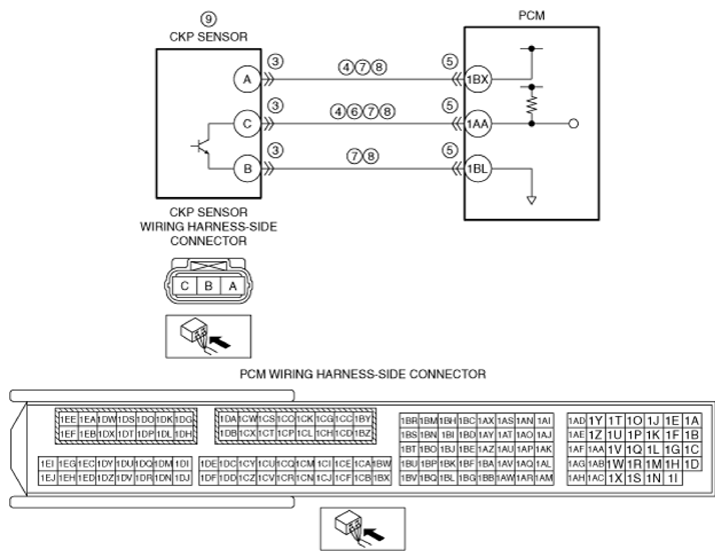

POSSIBLE CAUSE	CKP sensor connector or terminals malfunction Short to ground in wiring harness between the following terminals: CKP sensor terminal A-PCM terminal 1BX CKP sensor terminal C-PCM terminal 1AA PCM connector or terminals malfunction Short to power supply in wiring harness between CKP sensor terminal C and PCM terminal 1AA CKP sensor circuits are shorted to each other Open circuit in wiring harness between the following terminals: CKP sensor terminal A-PCM terminal 1BX CKP sensor terminal C-PCM terminal 1AA CKP sensor terminal B-PCM terminal 1BL CKP sensor malfunction CKP sensor is dirty CKP sensor pulse wheel malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
