DTC P0223-00: TP Sensor No. 2 Circuit High Input: Notes

WARNING: This page is about a different variant/trim than selected.

DTC P0223:00 (PCM, VIN Y) DETECTION CONDITION AND POSSIBLE CAUSE

DTC P0223:00	TP sensor No. 2 circuit high input
DETECTION CONDITION	If the PCM detects that the TP sensor No. 2 voltage at the PCM terminal 1BE is above 4.9 V, the PCM determines that the TP sensor No. 2 circuit has a malfunction. Diagnostic support note This is a continuous monitor (CCM). The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle. FREEZE FRAME DATA/Snapshot data is available. DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	Restricts the upper limit of the engine speed.

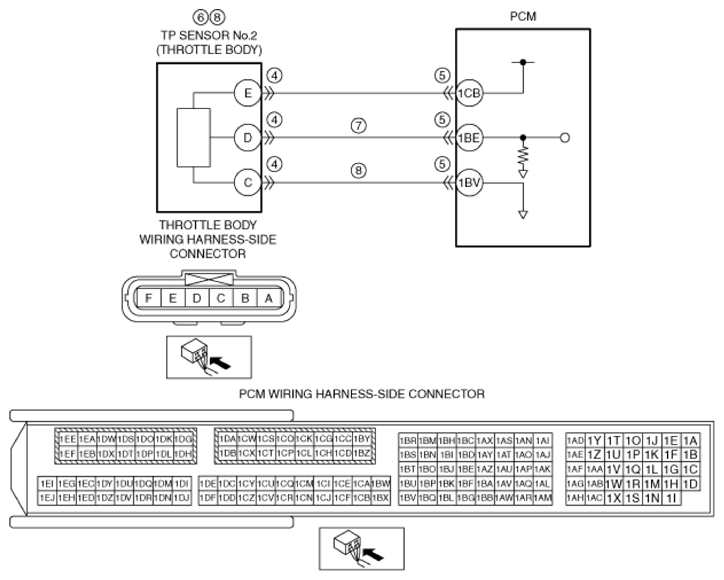

POSSIBLE CAUSE	Throttle body connector or terminals malfunction PCM connector or terminals malfunction TP sensor No. 2 malfunction Short to power supply in wiring harness between throttle body terminal D and PCM terminal 1BE Open circuit in wiring harness between throttle body terminal C and PCM terminal 1BV PCM malfunction
Courtesy of MAZDA MOTORS CORP.

CAUTION:

Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.
