DTC P0035-00: Air Bypass Valve Control Circuit High Input: Notes

DTC P0035:00 (PCM, VIN Y) DETECTION CONDITION AND POSSIBLE CAUSE

DTC P0035:00	Air bypass valve control circuit high input
DETECTION CONDITION	The air bypass valve control voltage at the PCM terminal 1 BC is high for a continuous 5 s relative to the PCM control condition. Diagnostic support note This is a continuous monitor (other). The check engine light does not illuminate. FREEZE FRAME DATA is not available. Snapshot data is available. DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	Stop the supercharging pressure control. (fully open the wastegate valve)

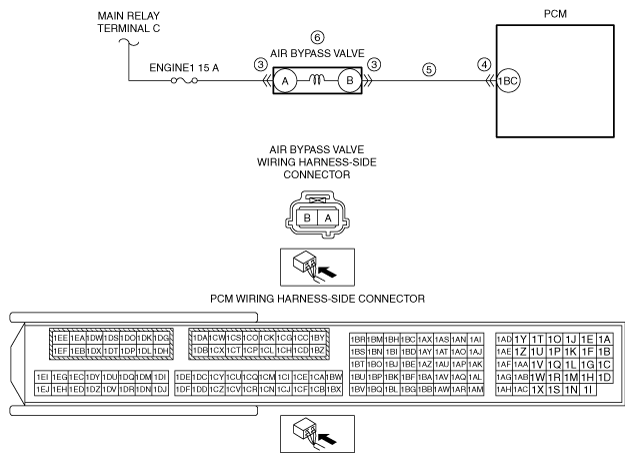

POSSIBLE CAUSE	Air bypass valve connector or terminals malfunction PCM connector or terminals malfunction Short to power supply in wiring harness between air bypass valve terminal B and PCM terminal 1 BC Air bypass valve malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
