Section 22 (On-Board Diagnostic - Engine Control (VIN Y) (1 Of 3))
>>
DTC P0011-00, P0012-00: Electric Variable Valve Timing Control System
>>

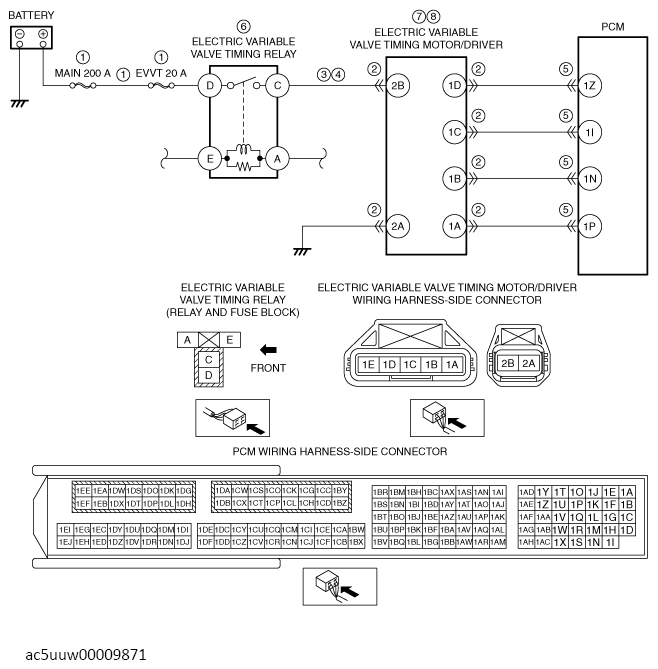

System Wiring Diagram
System Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of MAZDA MOTORS CORP.
