Quick Diagnostic Chart

WARNING: This page is about a different variant/trim than selected.

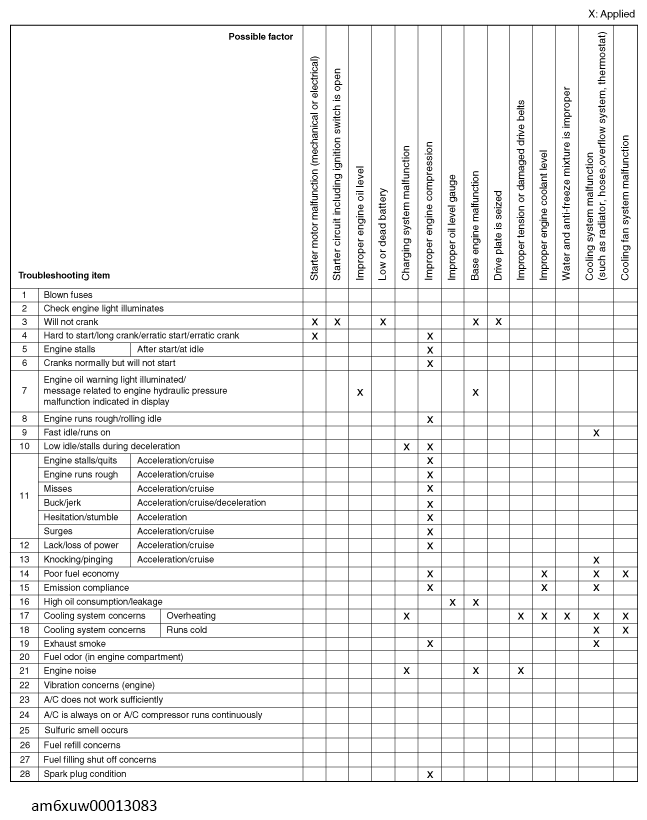

G13671506Courtesy of MAZDA MOTORS CORP.

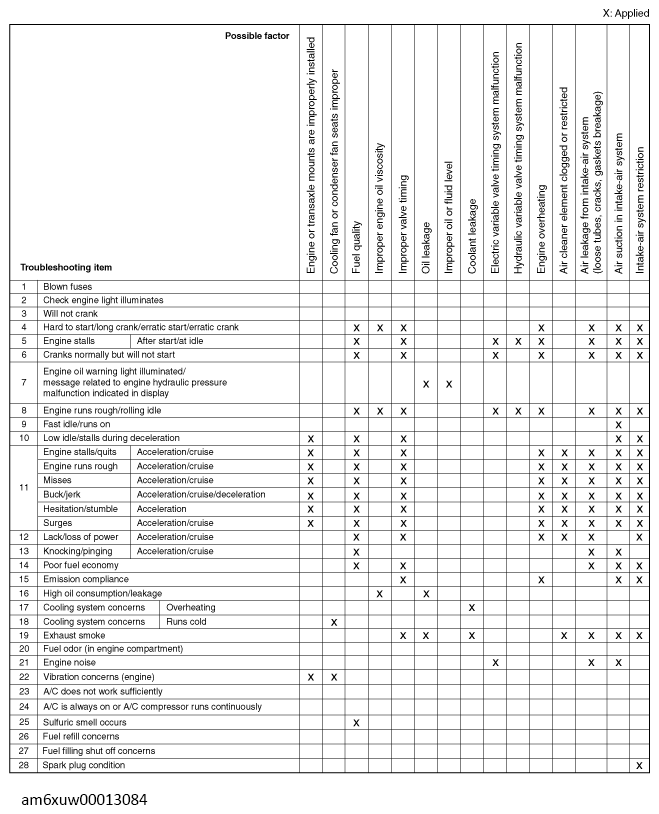

G13671507Courtesy of MAZDA MOTORS CORP.

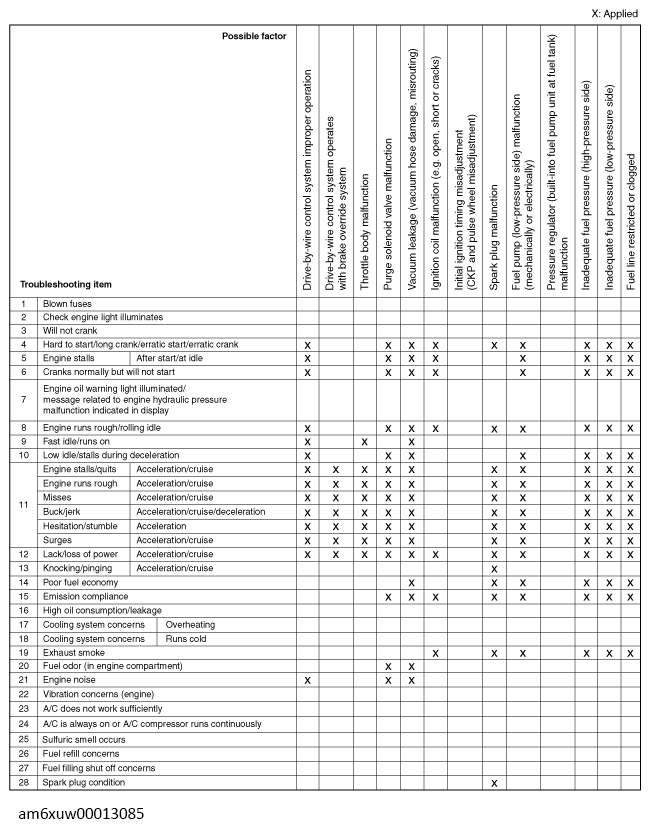

G13671508Courtesy of MAZDA MOTORS CORP.

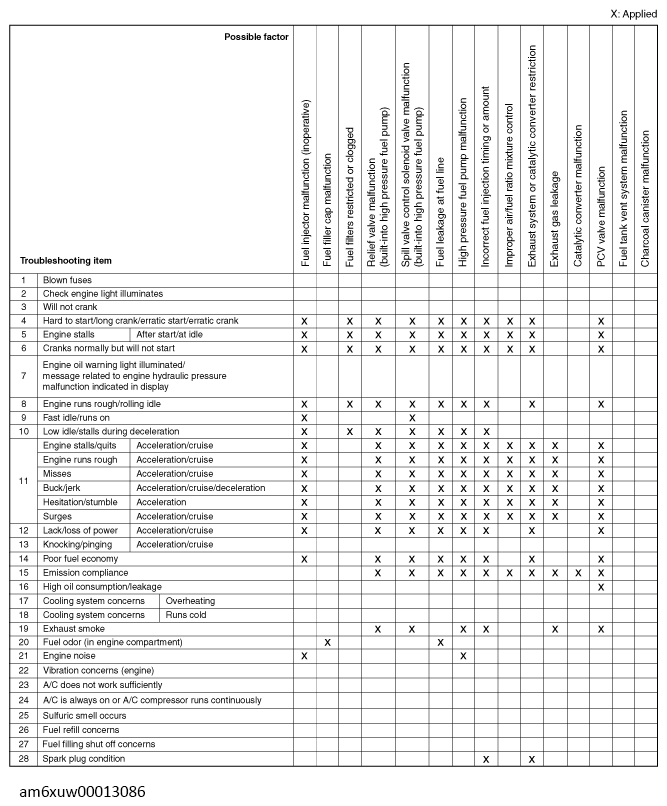

G13671509Courtesy of MAZDA MOTORS CORP.

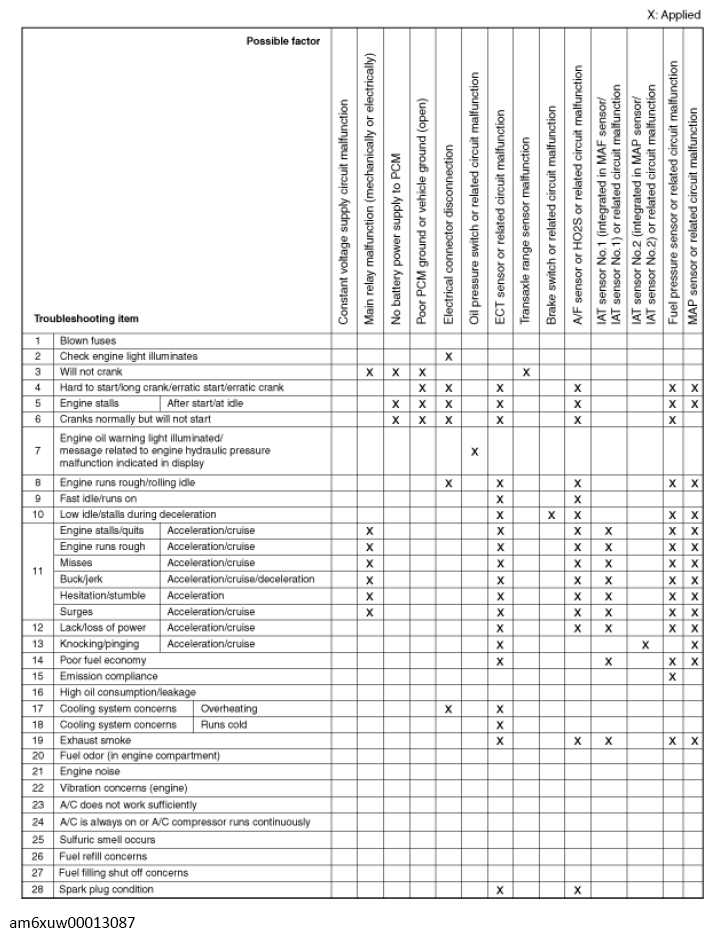

G13671510Courtesy of MAZDA MOTORS CORP.

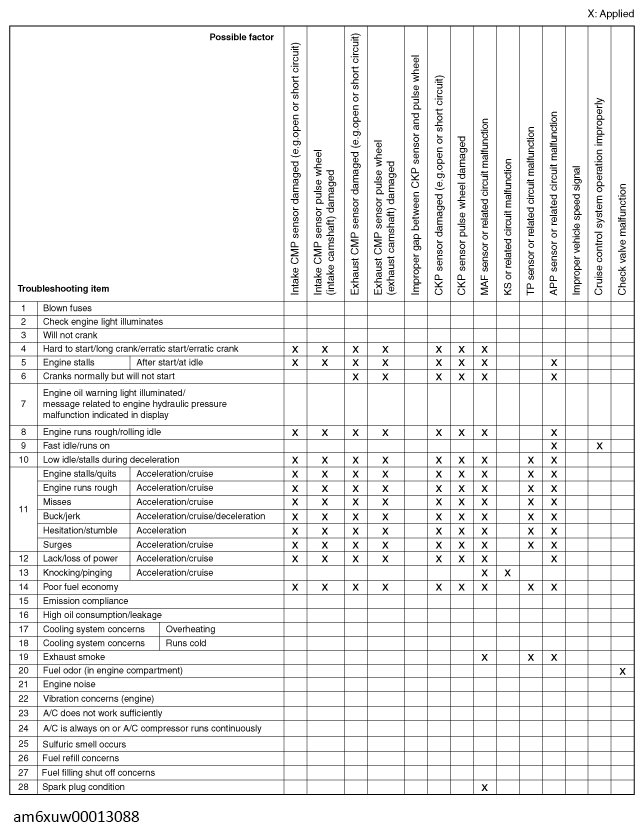

G13671511Courtesy of MAZDA MOTORS CORP.

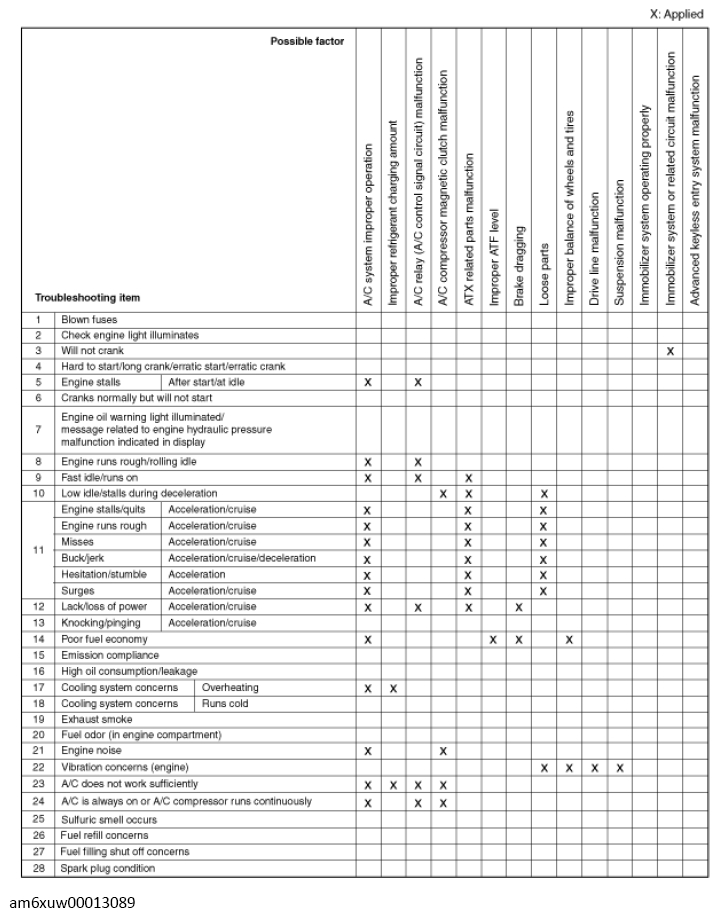

G13671512Courtesy of MAZDA MOTORS CORP.

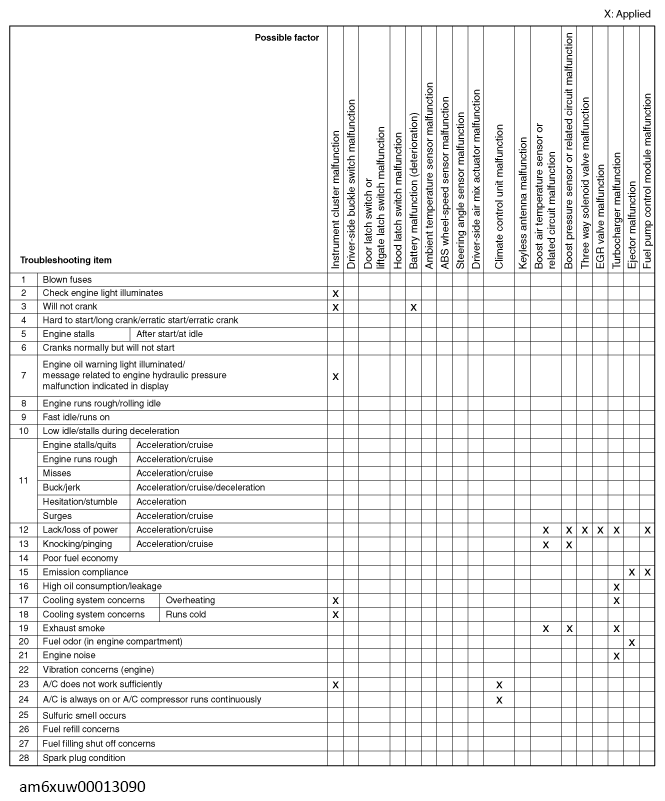

G13671513Courtesy of MAZDA MOTORS CORP.
