NO. 24 A/C IS ALWAYS ON OR A/C COMPRESSOR RUNS CONTINUOUSLY (VIN Y) DESCRIPTION AND POSSIBLE CAUSE
| 24 |
A/C IS ALWAYS ON OR A/C COMPRESSOR RUNS CONTINUOUSLY |
| DESCRIPTION |
- A/C compressor magnetic clutch does not disengage.
|
| POSSIBLE CAUSE |
- PCM, instrument cluster or climate control unit DTC is stored

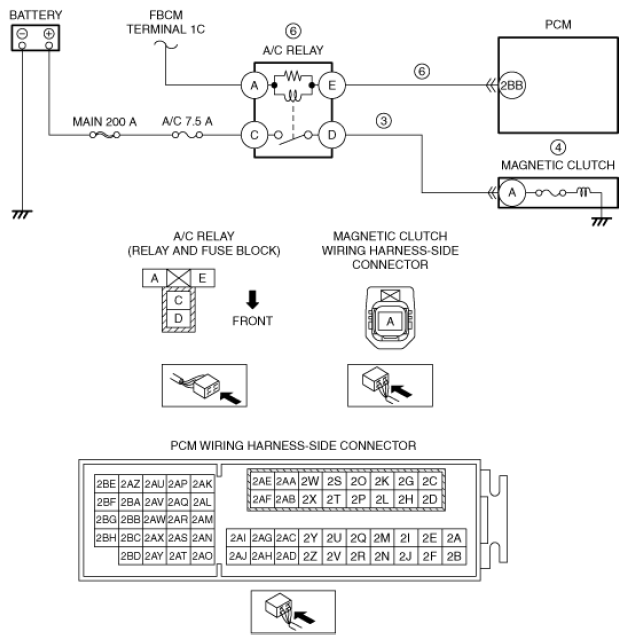

- Short to power supply in wiring harness between A/C relay terminal D and magnetic clutch terminal A
- Magnetic clutch engagement is stuck
- Climate control unit malfunction (Climate control unit always transmits A/C request signal)
- A/C relay is stuck closed
- Short to ground in wiring harness between A/C relay terminal E and PCM terminal 2BB
|
 Courtesy of MAZDA MOTORS CORP.
|
