Water Hose: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [VIN Y] .)
    • Air cleaner cover
    • Air cleaner element
    • Fresh-air duct
    • Air cleaner case
    • Air hose
  3. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  4. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [VIN Y] .)
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.
  7. Add the engine coolant. (See ENGINE COOLANT REPLACEMENT [VIN Y] .)

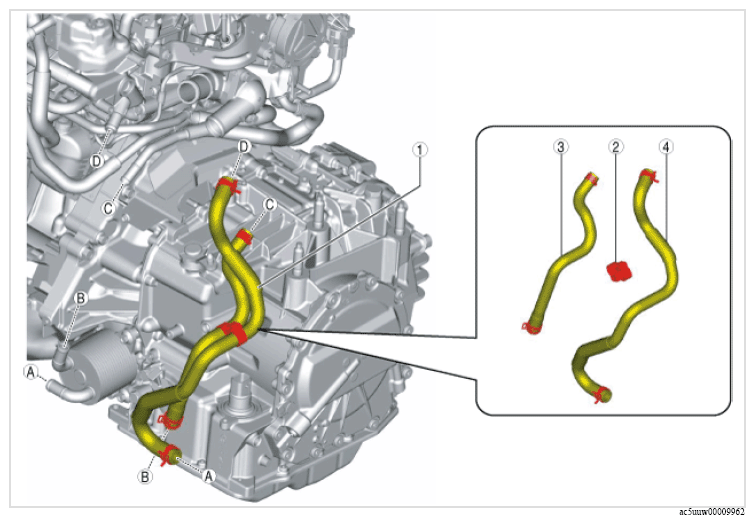

    G13112718Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 Water hose component
    (See Water hose No. 1 and No. 2 (oil cooler side) installation note .)
    (See Water hose No. 1 (water pipe side) installation note .)
    (See Water hose No. 2 (water pipe side) installation note .)
    2 Hose clip
    3 Water hose No. 1
    (See Water hose No. 1 and No. 2 (oil cooler side) installation note .)
    (See Water hose No. 1 (water pipe side) installation note .)
    4 Water hose No. 2
    (See Water hose No. 1 and No. 2 (oil cooler side) installation note .)
    (See Water hose No. 2 (water pipe side) installation note .)
