ATF Level Inspection
WARNING: This page is about a different variant/trim than selected.
- Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
- Disconnect the oil pipe No. 1 from the wiring harness bracket with the oil hose connected. (With oil cooler No. 2)

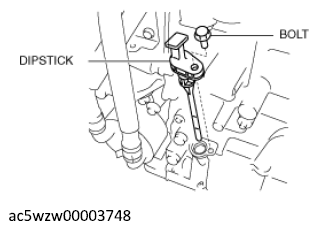

- Remove the dipstick securing bolt.
- Connect the M-MDS to the DLC-2 and display the PID TFT.
- Warm up the engine until the ATF temperature is 50 °C {122 °F}.
- Remove the dipstick and wipe ATF off using a nylon cloth while leaving the engine idling.WARNING:
- Keep hands and tools away from the cooling fan even if the cooling fan is not operating to prevent injury, or damage to the cooling fan.
- Do not touch parts which have become heated. Otherwise, it could cause severe burns or serious injury.
- Insert the dipstick and pull it out again.
- Verify that the ATF is adhering between L and F on the dipstick.
- If ATF is not adhering between L and F on the dipstick, adjust the ATF level. (See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT .)NOTE:
- The ATF color is blue.
- Only use ATF FZ for the GW6A-EL, GW6AX-EL.
ATF type ATF FZ - If ATF is not adhering between L and F on the dipstick, adjust the ATF level. (See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT .)
- Insert the dipstick and install the securing bolt.
Tightening torque
8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
- Install the oil pipe No. 1 to the wiring harness bracket. (With oil cooler No. 2)
- Install the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
