Ignition Coil/Ion Sensor Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.

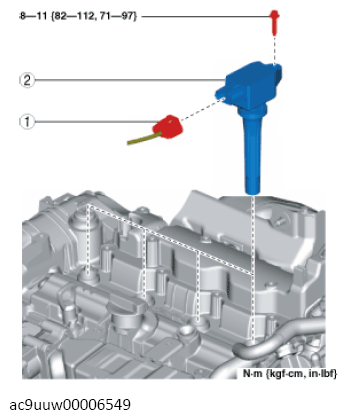

- Install in the reverse order of removal.PARTS DESCRIPTION
1 Connector 2 Ignition coil/ion sensor
(See IGNITION COIL/ION SENSOR REMOVAL NOTE .)
