Except U.S.A. and CANADA

WARNING: This page is about a different variant/trim than selected.

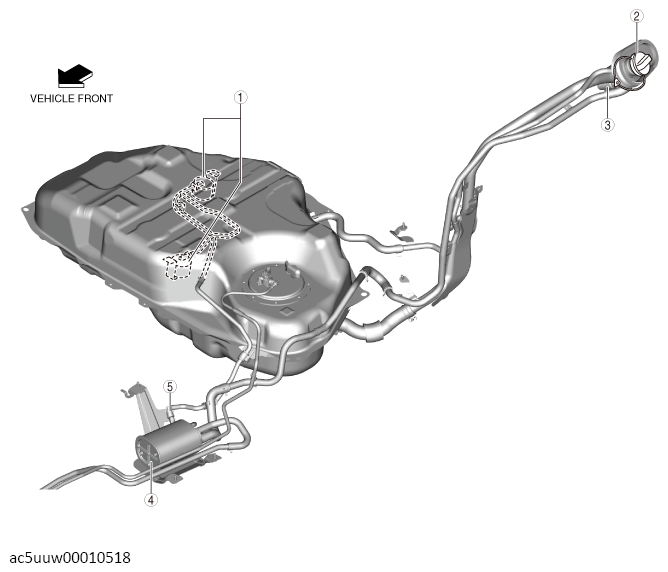

G13672720Courtesy of MAZDA MOTORS CORP.
PARTS DESCRIPTION

1 Rollover valve
(See ROLLOVER VALVE REMOVAL/INSTALLATION (VIN Y) .)
(See ROLLOVER VALVE INSPECTION (VIN Y) .)
2 Fuel-filler cap
(See FUEL-FILLER PIPE REMOVAL/INSTALLATION (VIN Y) .)
(See FUEL-FILLER CAP INSPECTION (VIN Y) .)
3 Plug
(See FUEL-FILLER PIPE REMOVAL/INSTALLATION (VIN Y) .)
4 Charcoal canister
(See CHARCOAL CANISTER REMOVAL/INSTALLATION (VIN Y) .)
(See CHARCOAL CANISTER INSPECTION (VIN Y) .)
5 Check valve
(See CHECK VALVE (EMISSION SYSTEM) REMOVAL/INSTALLATION (VIN Y) .)
(See CHECK VALVE (EMISSION SYSTEM) INSPECTION (VIN Y) .)
