Section 17 (Emission System (VIN Y))
>>
Emission System Diagram
Emission System Diagram
WARNING:
This page is about a different variant/trim than selected.

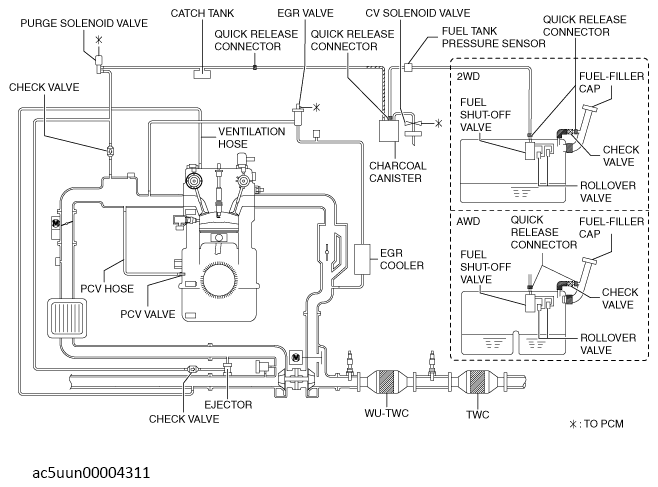

U.S.A. and CANADA
Courtesy of MAZDA MOTORS CORP.

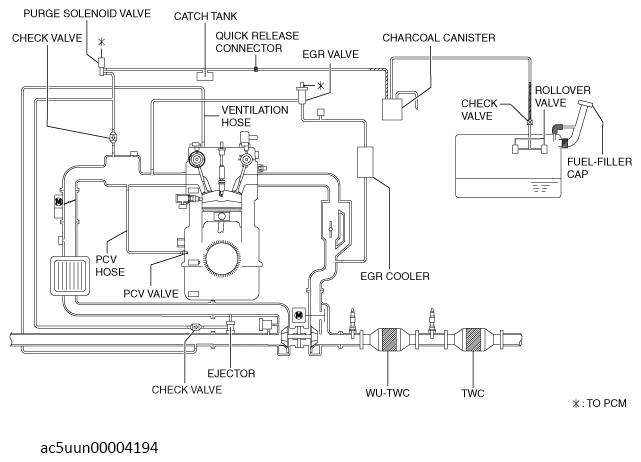

Except U.S.A. and CANADA
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
