EGR Pipe Removal/Installation: Notes

Replacement Part

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
3. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
4. Remove the EGR cooler. (See EGR COOLER REMOVAL/INSTALLATION .)
5. Remove the air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
6. Remove the bolts shown in the figure and set the water pipe aside.

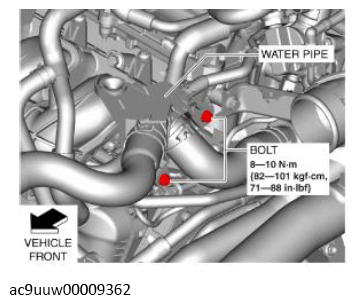

   Fig 1: Water Pipe Bolts With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
7. Remove in the order indicated in the table.

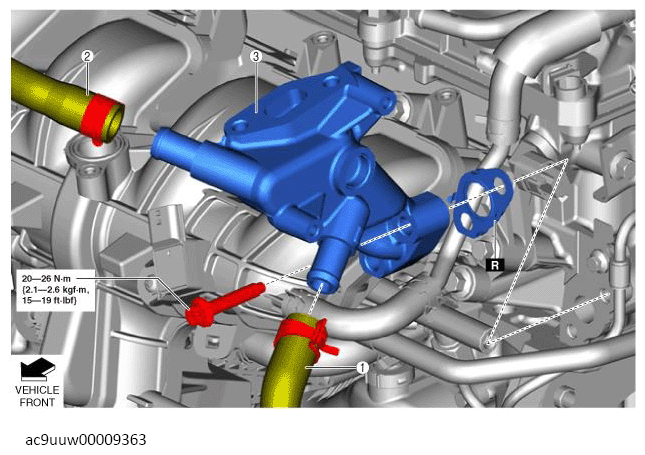

   Fig 2: EGR Pipe Components With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
   PARTS DESCRIPTION



   1	Water hose No. 1 (See WATER HOSE NO. 1 INSTALLATION NOTE .)
   2	Water hose No. 2 (See WATER HOSE NO. 2 INSTALLATION NOTE .)
   3	EGR pipe

8. Install in the reverse order of removal.
