EGR Cooler Installation Bolt Removal Note
WARNING: This page is about a different variant/trim than selected.

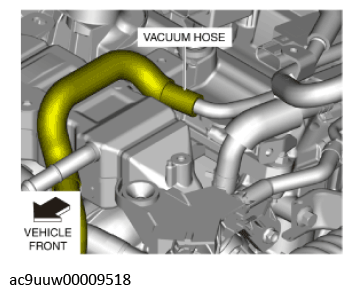

- Disconnect the vacuum hose from the vacuum pipe.
 Courtesy of MAZDA MOTORS CORP.
|

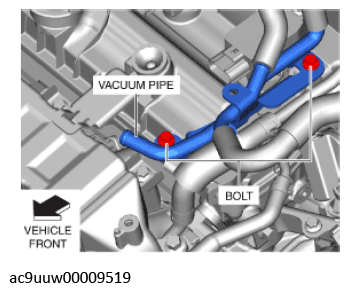

- Remove the bolts shown in the figure and set the vacuum pipe aside.
 Courtesy of MAZDA MOTORS CORP.
|
- Remove the EGR cooler installation bolts.
