EGR Cooler Installation Bolt Installation Note

WARNING: This page is about a different variant/trim than selected.

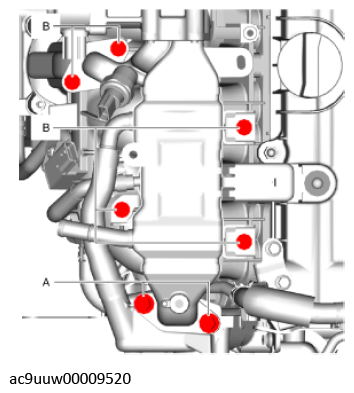

  1. Install the EGR cooler installation bolts.
    G11436251Courtesy of MAZDA MOTORS CORP.
    TIGHTENING TORQUE SPECIFICATION

    Tightening torque
    A: 20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}
    B: 8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
  2. Install the vacuum pipe.
    G11436248Courtesy of MAZDA MOTORS CORP.
    TIGHTENING TORQUE SPECIFICATION

    Tightening torque
    8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}

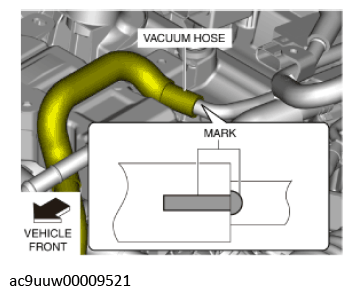

  3. Connect the vacuum hose as shown in the figure.
G11436253Courtesy of MAZDA MOTORS CORP.
