Fuel Tank Side (Except U.S.A. and CANADA)

WARNING: This page is about a different variant/trim than selected.
  1. Remove the floor under cover No. 2 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  2. Remove the floor under cover No. 1 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

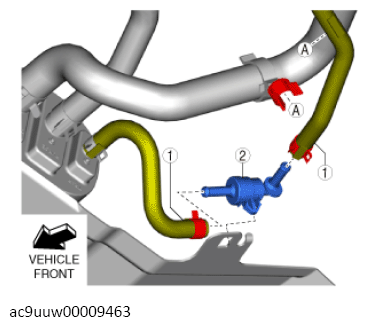

    G13672693Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION

    1 Evaporative hose
    2 Check valve (fuel tank side)
  4. Install in the reverse order of removal.
