- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the floor under cover No. 2 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

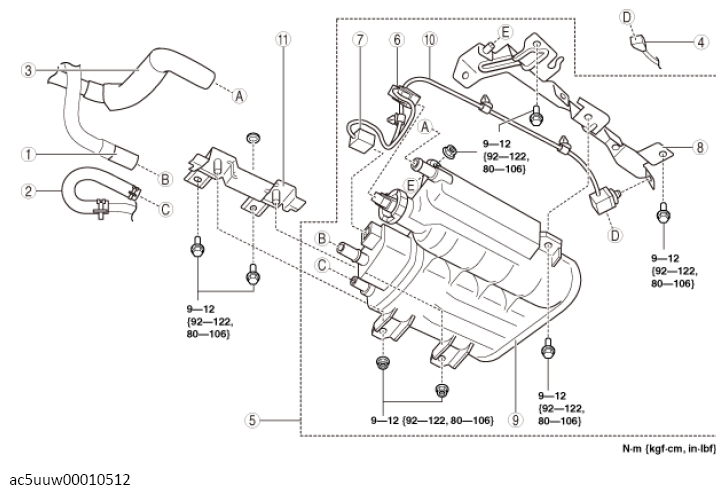

PARTS DESCRIPTION
| 1 | Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION (VIN Y) .) |
| 2 | Evaporative hose No. 1 (See EVAPORATIVE HOSE NO. 1 INSTALLATION NOTE .) |
| 3 | Evaporative hose No. 2 (See EVAPORATIVE HOSE NO. 2 INSTALLATION NOTE .) |
| 4 | Middle harness connector |
| 5 | Charcoal canister component (See CHARCOAL CANISTER COMPONENT INSTALLATION NOTE .) |
| 6 | CV solenoid valve connector |
| 7 | Fuel tank pressure sensor connector |
| 8 | Charcoal canister bracket No. 1 |
| 9 | Charcoal canister |
| 10 | Wiring harness |
| 11 | Charcoal canister bracket No. 2 |
