Bracket No. 1 Installation Note
WARNING: This page is about a different variant/trim than selected.
- Temporarily tighten the bracket No. 1 bolts.

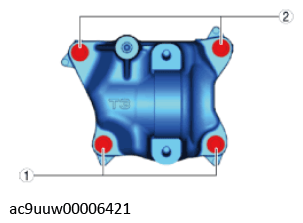

- Tighten the bolts in the order shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Tightening torque
42-62 N.m {4.3-6.3 kgf.m, 31-45 ft.lbf}
