Intake-Air System Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
Replacement Part
| Gasket | Charge air cooler air inlet hose | Hose clamp |
| Quantity: 1 | Quantity: 1 | Quantity: 1 |
| Location of use: Turbocharger air outlet pipe component | Location of use: Turbocharger air outlet pipe component | Location of use: Charge air cooler air outlet hose |
| Gasket | Intake manifold gasket | |
| Quantity: 1 | Quantity: 4 | - |
| Location of use: Throttle body | Location of use: Intake manifold |
Oil and Chemical Type
| Engine oil |
| Type: Recommended oil |
WARNING:
- A hot engine and intake air system can cause severe burns. Turn off the engine and wait until they are cool before removing the intake air system.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

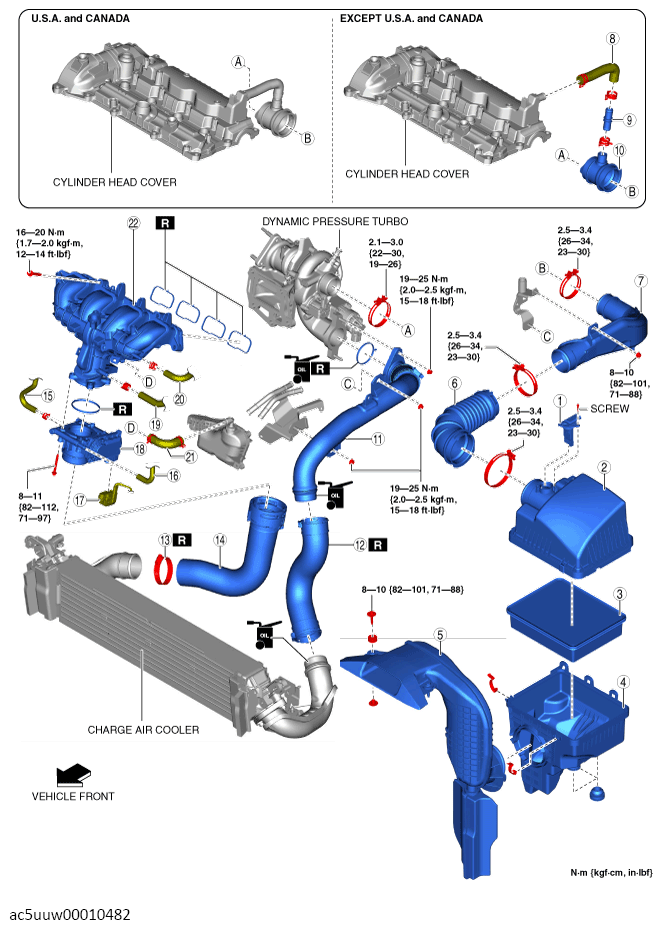

PARTS DESCRIPTION
| 1 | MAF sensor/IAT sensor No. 1 (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 1 REMOVAL/INSTALLATION .) |
| 2 | Air cleaner cover (See Air Cleaner Cover Installation Note .) |
| 3 | Air cleaner element |
| 4 | Air cleaner case |
| 5 | Fresh-air duct (See Fresh-air Duct Removal Note .) |
| 6 | Air hose |
| 7 | Air inlet pipe (See Air Inlet Pipe Removal Note .) |
| 8 | Breather hose |
| 9 | Ventilation pipe |
| 10 | Turbocharger air inlet hose |
| 11 | Turbocharger air outlet pipe (See Turbocharger Air Outlet Pipe Removal Note .) |
| 12 | Charge air cooler inlet hose (See Charge Air Cooler Inlet Hose Removal Note .) (See Charge Air Cooler Inlet Hose Installation Note .) |
| 13 | Hose clamp (See Hose Clamp Installation Note .) |
| 14 | Charge air cooler outlet hose (See Charge Air Cooler Outlet Hose Removal Note .) (See Charge Air Cooler Outlet Hose Installation Note .) |
| 15 | Water hose No. 2 |
| 16 | Water hose No. 1 |
| 17 | Throttle body connector |
| 18 | Throttle body |
| 19 | Vacuum hose No. 2 |
| 20 | Vacuum hose No. 1 |
| 21 | PCV hose |
| 22 | Intake manifold (See Intake Manifold Removal Note ) |
