Accelerator Pedal Removal/Installation

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove in the order indicated in the table.

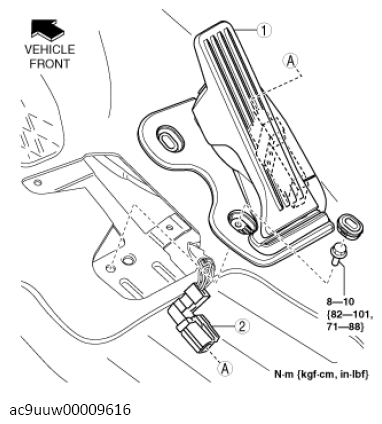

Fig 1: Accelerator Pedal Components With Torque Specification
Courtesy of MAZDA MOTORS CORP.
PARTS DESCRIPTION

1 Accelerator pedal

2 APP sensor connector
Install in the reverse order of removal.

1	Accelerator pedal
2	APP sensor connector
