WU-TWC installation note (AWD)

WARNING: This page is about a different variant/trim than selected.

Temporarily tighten the WU-TWC installation nuts.

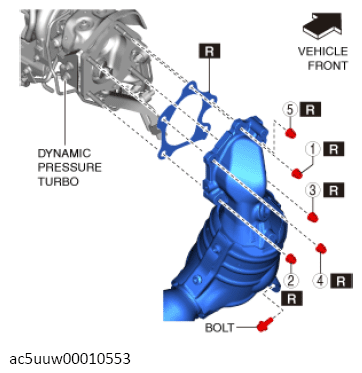

Fig 1: WU-TWC Installation Nuts Bolts Tightening Sequence (AWD)
Courtesy of MAZDA MOTORS CORP.
Tighten the WU-TWC installation nuts in the order shown in the figure to the specified torque.
TIGHTENING TORQUE SPECIFICATION

Tightening torque

45-62 N.m {4.6-6.3 kgf.m, 34-45 ft.lbf}
Temporarily tighten the WU-TWC installation bolt.
Tighten the WU-TWC installation bolt to the specified torque.

TIGHTENING TORQUE SPECIFICATION

Tightening torque

38-51 N.m {3.9-5.2 kgf.m, 29-37 ft.lbf}
