Exhaust manifold installation note (AWD)

WARNING: This page is about a different variant/trim than selected.

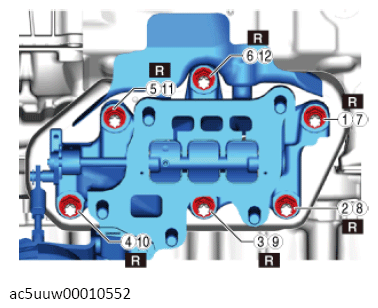

Fig 1: Exhaust Manifold Installation Nuts Tightening Sequence (AWD)

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Tightening torque

50-57 N.m {5.1-5.8 kgf.m, 37-42 ft.lbf}
