WU-TWC insulator No. 1 installation note (2WD)
WARNING: This page is about a different variant/trim than selected.
- Temporarily tighten the WU-TWC insulator No. 1 installation bolts.
Courtesy of MAZDA MOTORS CORP.

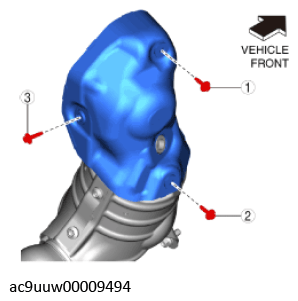

- Tighten the bolts in the order shown in the figure.
TIGHTENING TORQUE SPECIFICATION
| Tightening torque |
| 8-10 N.m {82-101 kgf.cm, 71-88 in.lbf} |
