Plate installation note (2WD)
WARNING: This page is about a different variant/trim than selected.

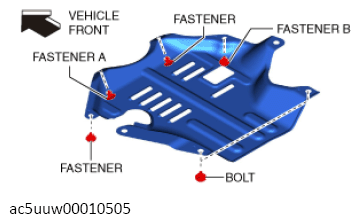

- Install fastener A shown in the figure.
 Courtesy of MAZDA MOTORS CORP.
|
- Install fastener B shown in the figure.
- Install the remaining fasteners.
- Tighten the bolts shown in the figure to the specified torque.
TIGHTENING TORQUE SPECIFICATION
| Tightening torque |
| 9-12 N.m {92-122 kgf.cm, 80-106 in.lbf} |
