Brace bar installation note (2WD)
WARNING: This page is about a different variant/trim than selected.

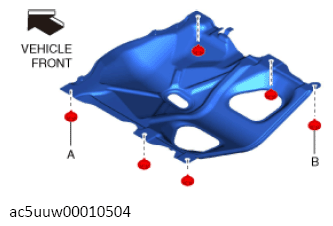

- Tighten bolt A shown in the figure to the specified torque.TIGHTENING TORQUE SPECIFICATION
Tightening torque 18-26 N.m {1.9-2.6 kgf.m, 14-19 ft.lbf} - Tighten bolt B shown in the figure to the specified torque.TIGHTENING TORQUE SPECIFICATION
Tightening torque 18-26 N.m {1.9-2.6 kgf.m, 14-19 ft.lbf} - Tighten the remaining bolts to the specified torque.TIGHTENING TORQUE SPECIFICATION
Tightening torque 18-26 N.m {1.9-2.6 kgf.m, 14-19 ft.lbf} - Install the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
