Exhaust System Insulator Removal/Installation (AWD): Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

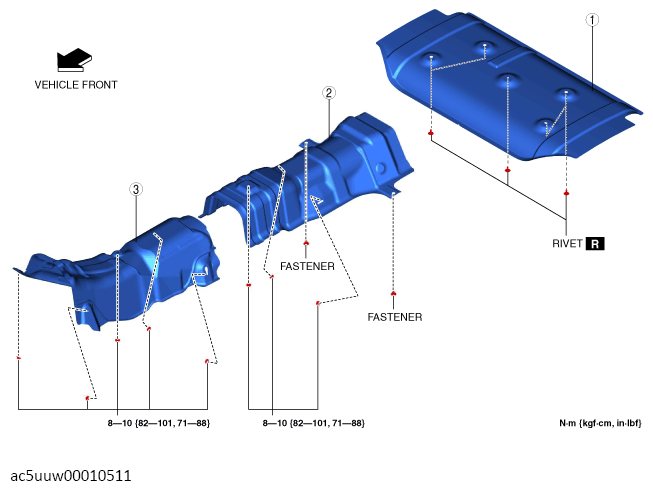

    Fig 1: Exhaust System Insulator With Torque Specification (AWD)
    G13672623Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION

    1 Insulator (rear)
    (See Insulator (rear) removal note (AWD) .)
    (See INSULATOR (REAR) INSTALLATION NOTE (AWD) .)
    2 Insulator (middle)
    (See INSULATOR (MIDDLE) INSTALLATION NOTE (AWD) .)
    3 Insulator (front)
    (See INSULATOR (FRONT) INSTALLATION NOTE (AWD) .)
