Exhaust System Insulator Removal/Installation (2WD): Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

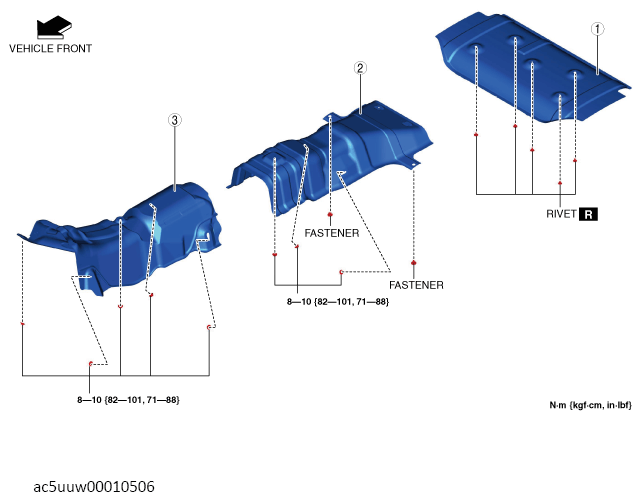

    Fig 1: Exhaust System Insulator With Torque Specification (2WD)
    G13672612Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION

    1 Insulator (rear)
    (See Insulator (rear) removal note (2WD) .)
    (See INSULATOR (REAR) INSTALLATION NOTE (2WD) .)
    2 Insulator (middle)
    (See INSULATOR (MIDDLE) INSTALLATION NOTE (2WD) .)
    3 Insulator (front)
    (See INSULATOR (FRONT) INSTALLATION NOTE (2WD) .)
